2-3/8" HSC-6

2-3/8" HSC-6 Automatic Multi Spindle Lathes

We have in stock National Acme 2-3/8" HSC-6 automatic screw machines for sale, and can rebuild, retool, and/or retrofit any of our used Acme Gridley screw machines to specifically meet your needs. JEM Automatics guarantees the performance of all Acme Gridley screw machines we rebuild. Optionally, turnkey setup services can be provided, where we would supply the machine fully tooled and already proven to produce your part automatically and within tolerance before it is delivered to your plant.

The Acme Gridley 2-3/8" HSC6 screw machine is a 6 spindle automatic lathe high speed chucker machine. Standard multispindle chucking machine specifications and capacities shown are for reference only, as a custom retrofit by JEM may improve upon or modify these specifications. Many of the National Acme standard equipment options and attachments available to configure an Acme Gridley 2-3/8" HSC6 screw machine are listed here. Please use our quick RFQ form below and we will review your specific requirements and follow up with a machinery quotation and/or recommendation for your consideration.



Acme Gridley 2-3/8" HSC-6 Screw Machine Equipment and Attachments

(equipped based on your tooling setup)

Base Component Options:

  • Universal Cross Slides
    • Specify - 1st, 2nd, 3rd, 4th, 5th, or 6th position
  • End Tool Slide Drill Holders
    • Specify - 1st, 2nd, 3rd, 4th, 5th, or 6th position
  • One Set of Cams and Gears as mounted
  • One Set of National Acme style Splash Guards
    • Optional JEM Custom Designed High Quality Guarding
  • Chip Conveyor
  • Coolant Pump
  • Main Drive Motor and Associated Push Button Controls
    • Specify Line Voltage - 240 or 480 VAC 3-phase standard


Available 2-3/8" HSC-6 Attachment Options:

  • Threading / Tapping Attachment
    • Optional Upgrade to JEM Linear Sensor 0.001" Tapping Control
  • Reaming Attachment
  • Air Pick-Up / Pick-Off Attachment
  • Air Back Finishing / Back Working Attachment
  • High Speed Drilling Attachment


Other Possible Upgrades & Screw Machine Retrofits:

  • Water Soluble Coolant & Spindle Carrier Seal Retrofit
  • TechControl Electrical Upgrade Package for Mechanical Machines
  • TechDrive Servo Machine Conversion with FANUC CNC Controls
  • Automatic Grease or Lube System for Maintenance Points

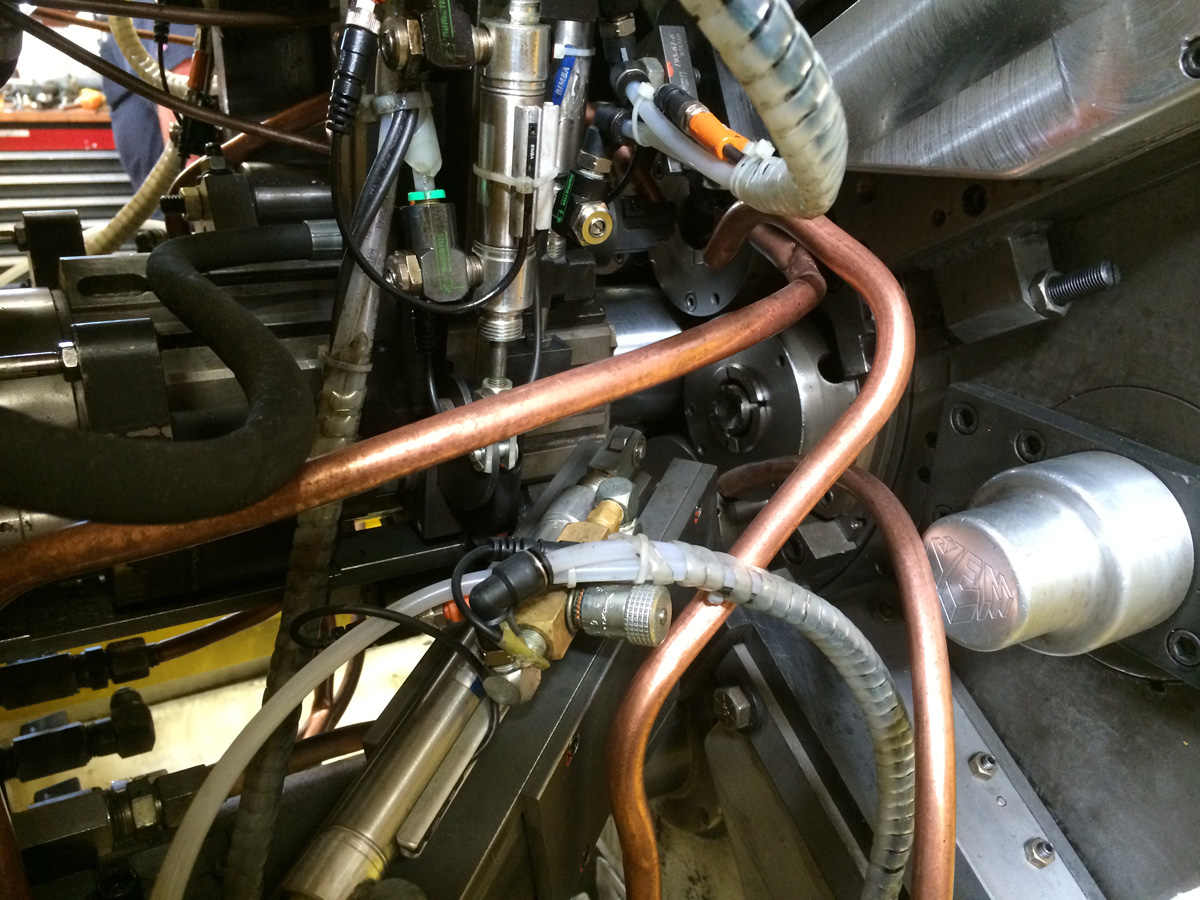

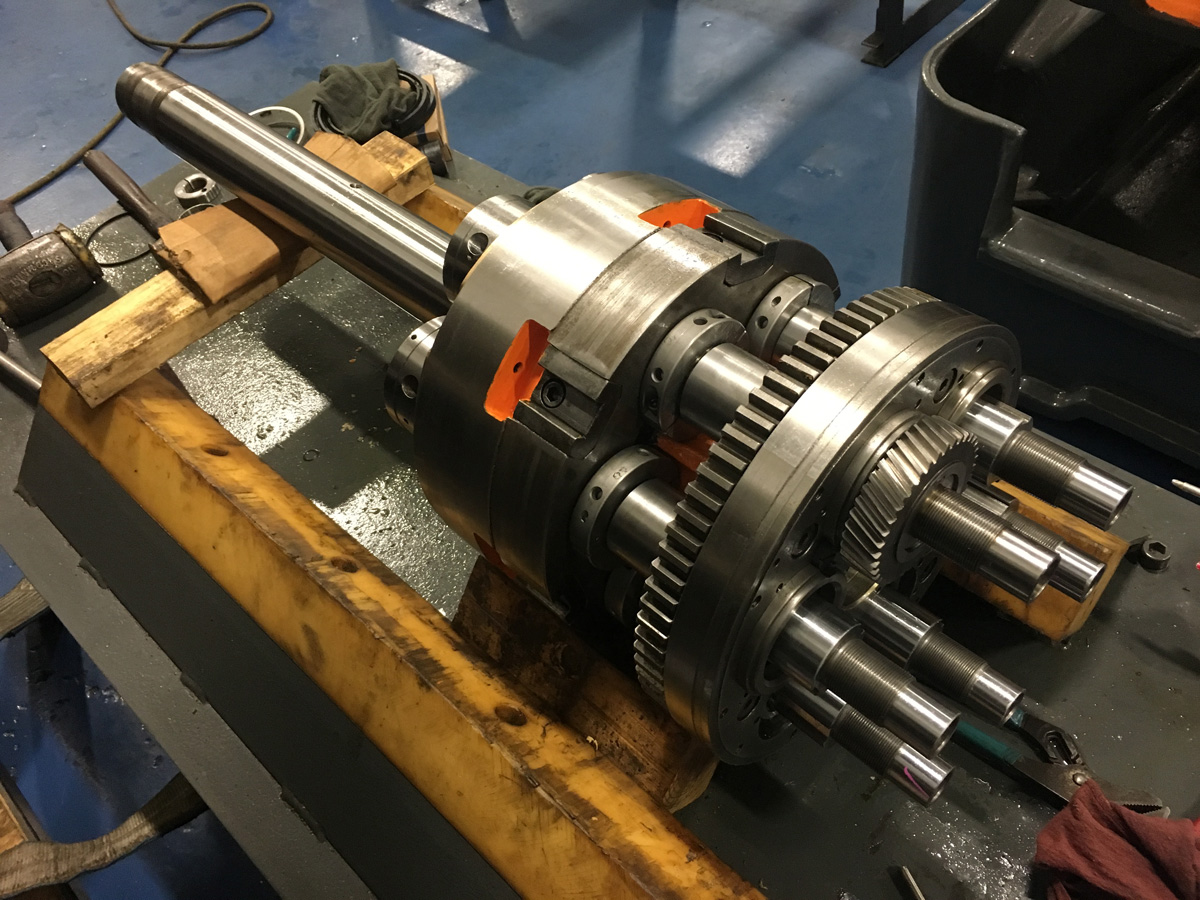

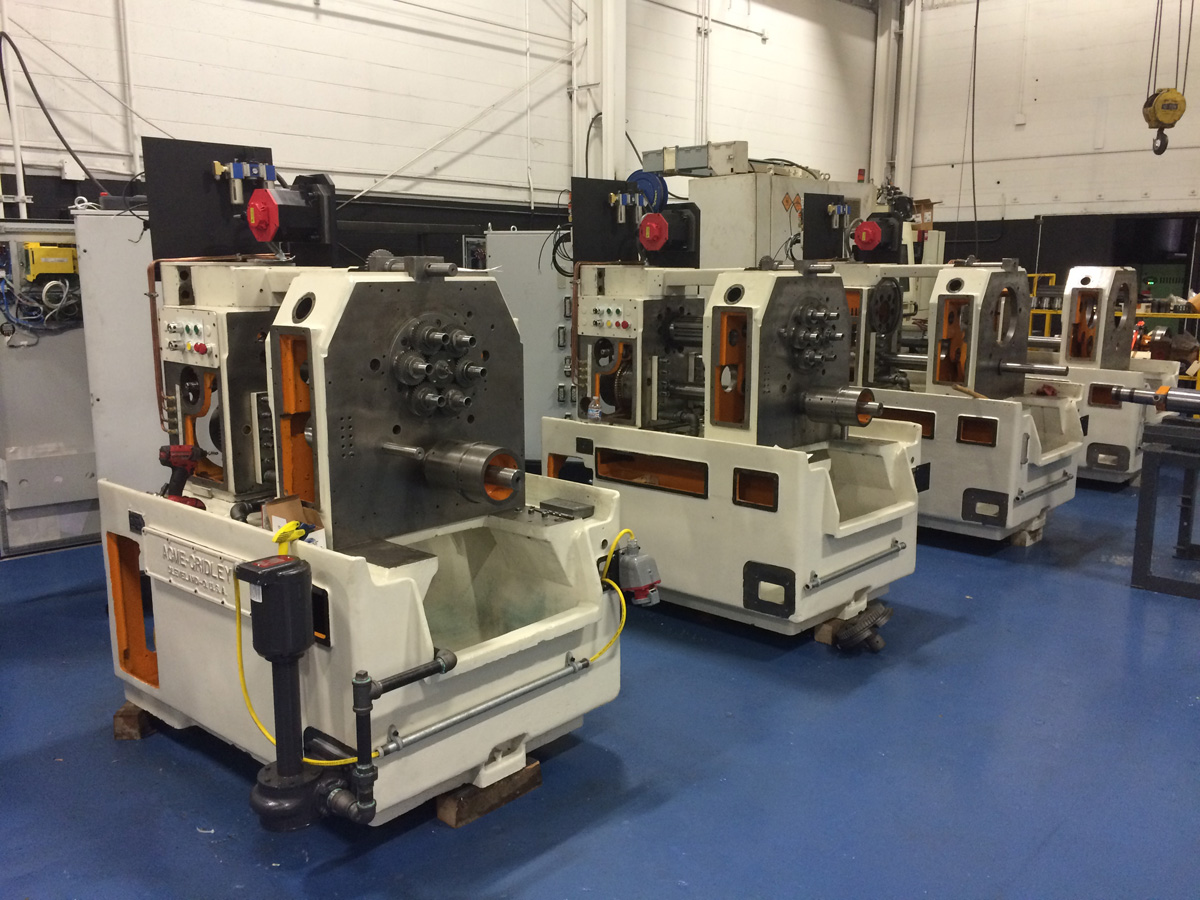

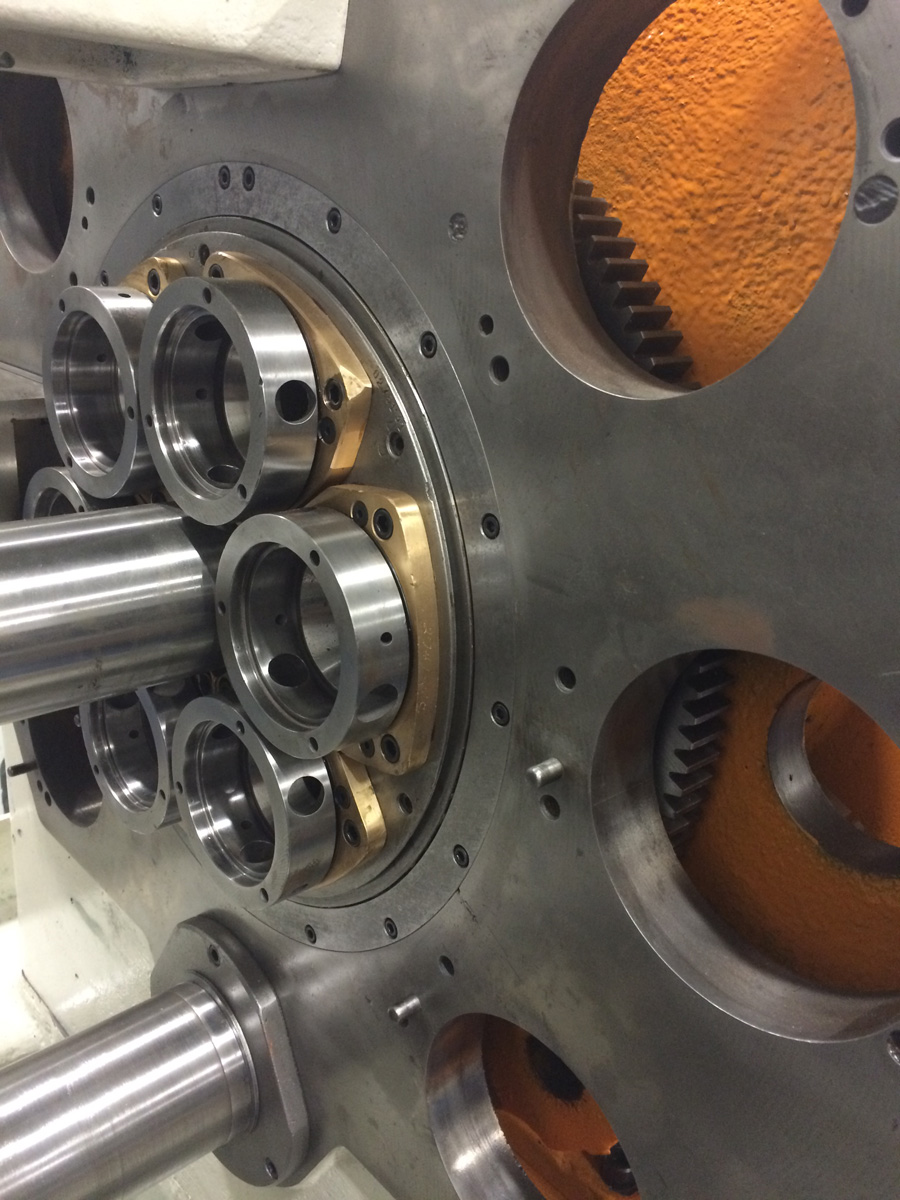

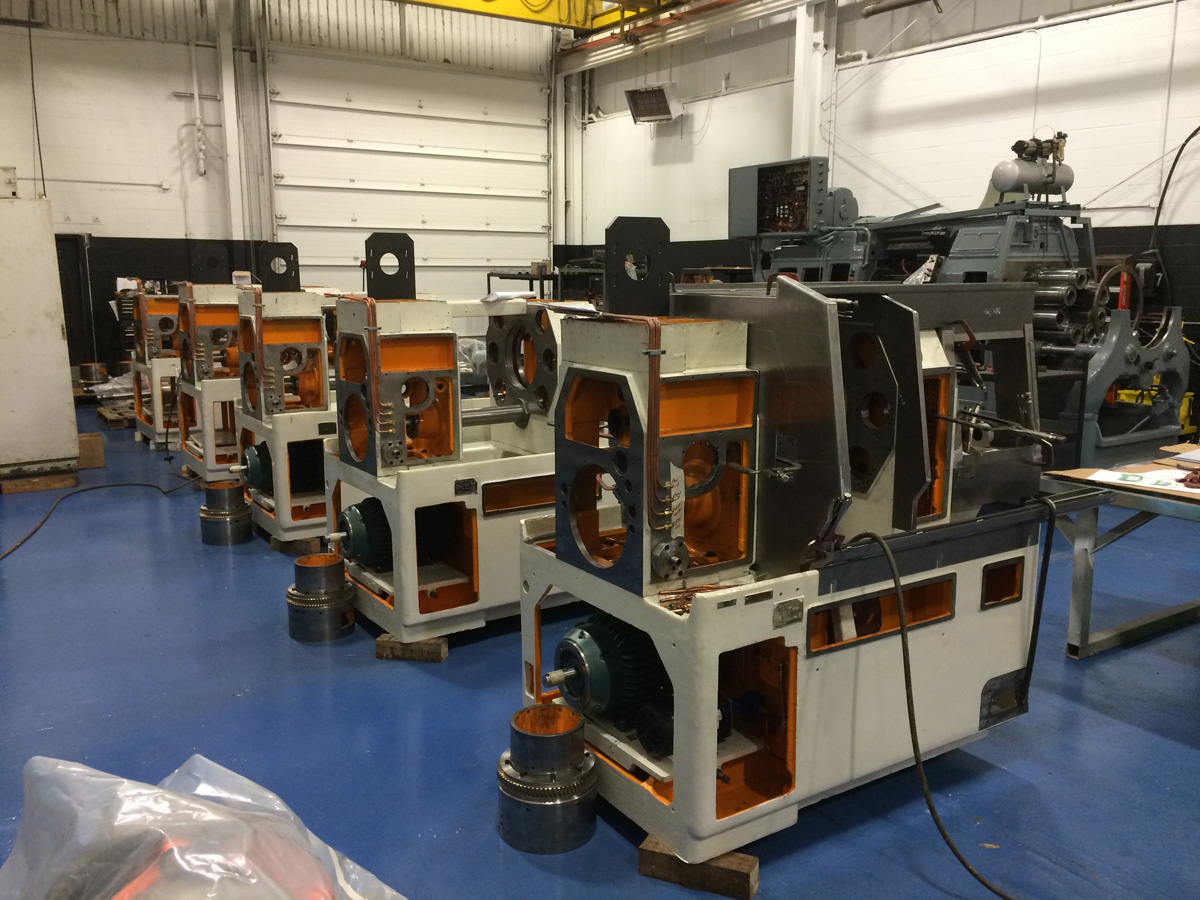

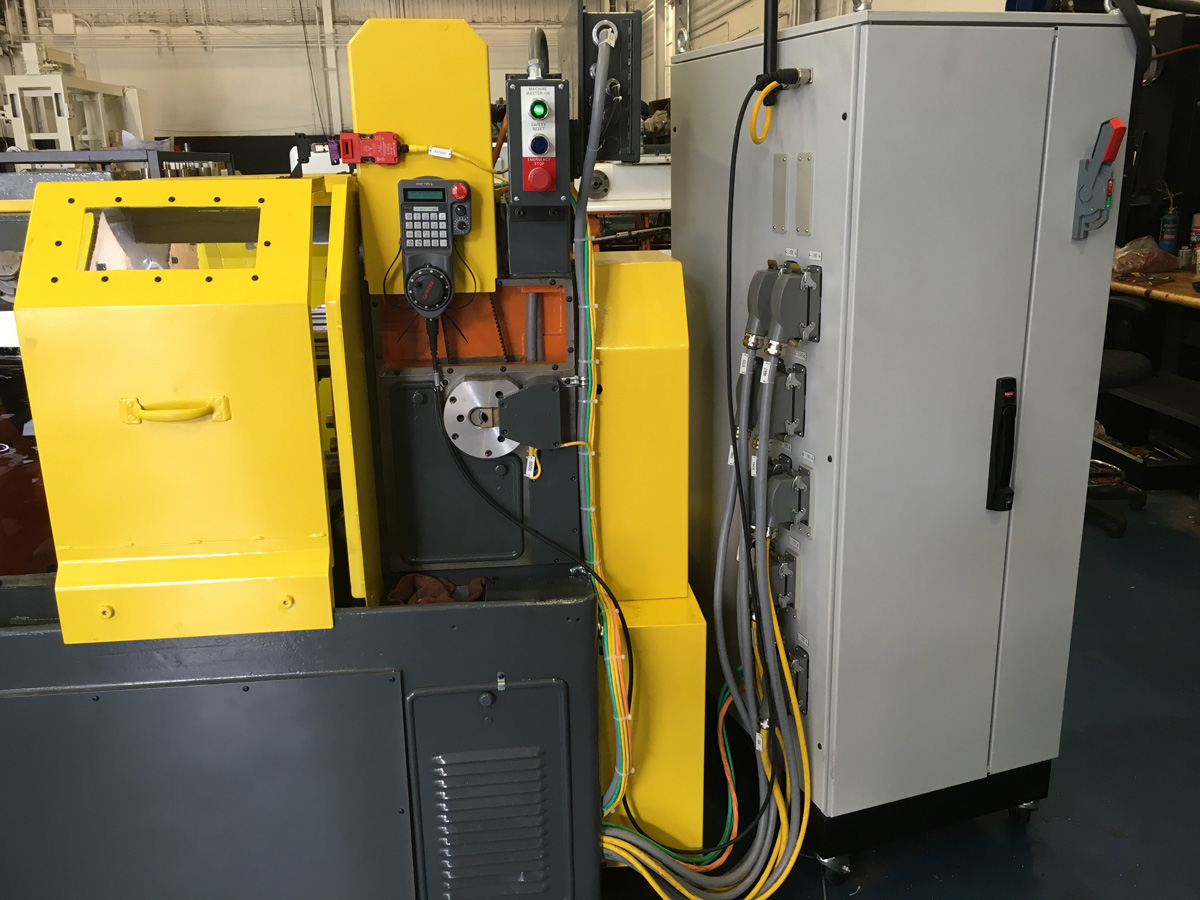

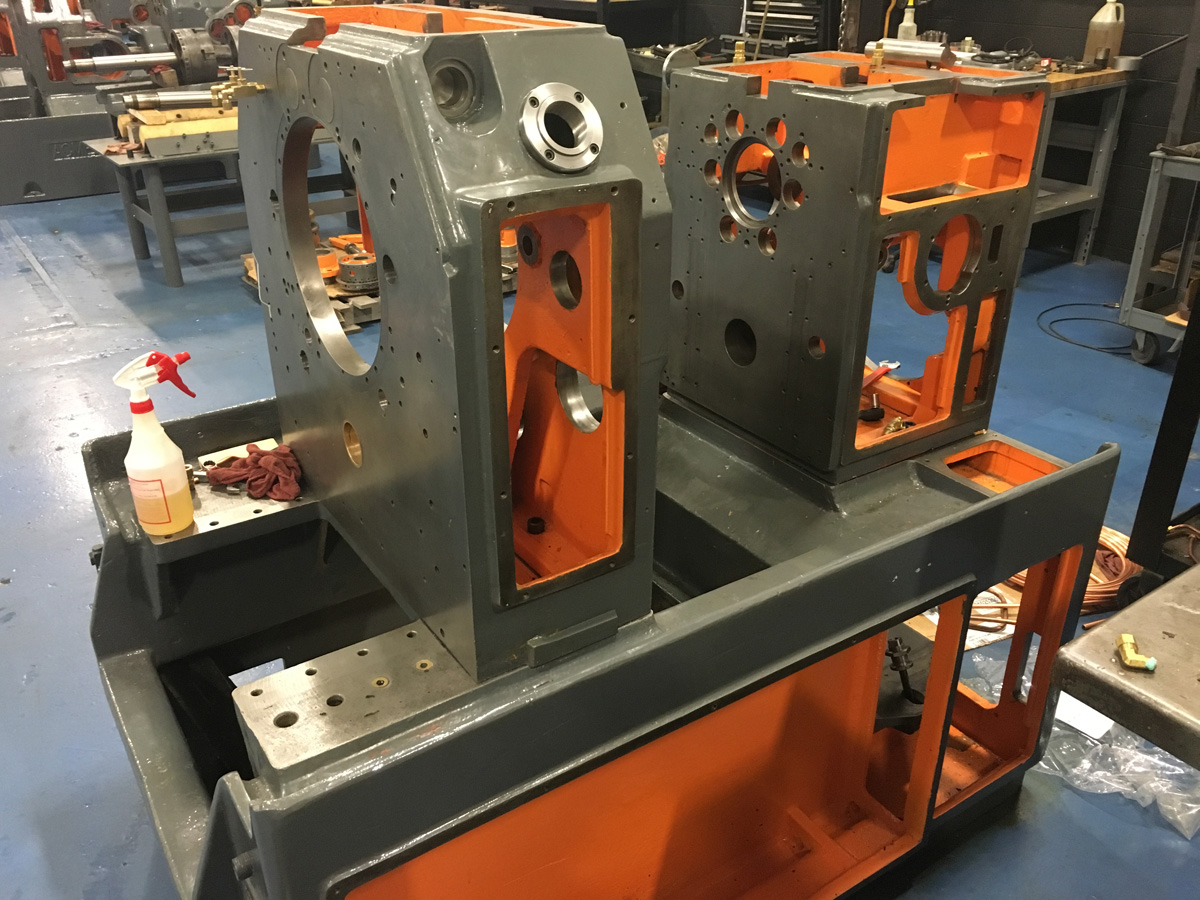

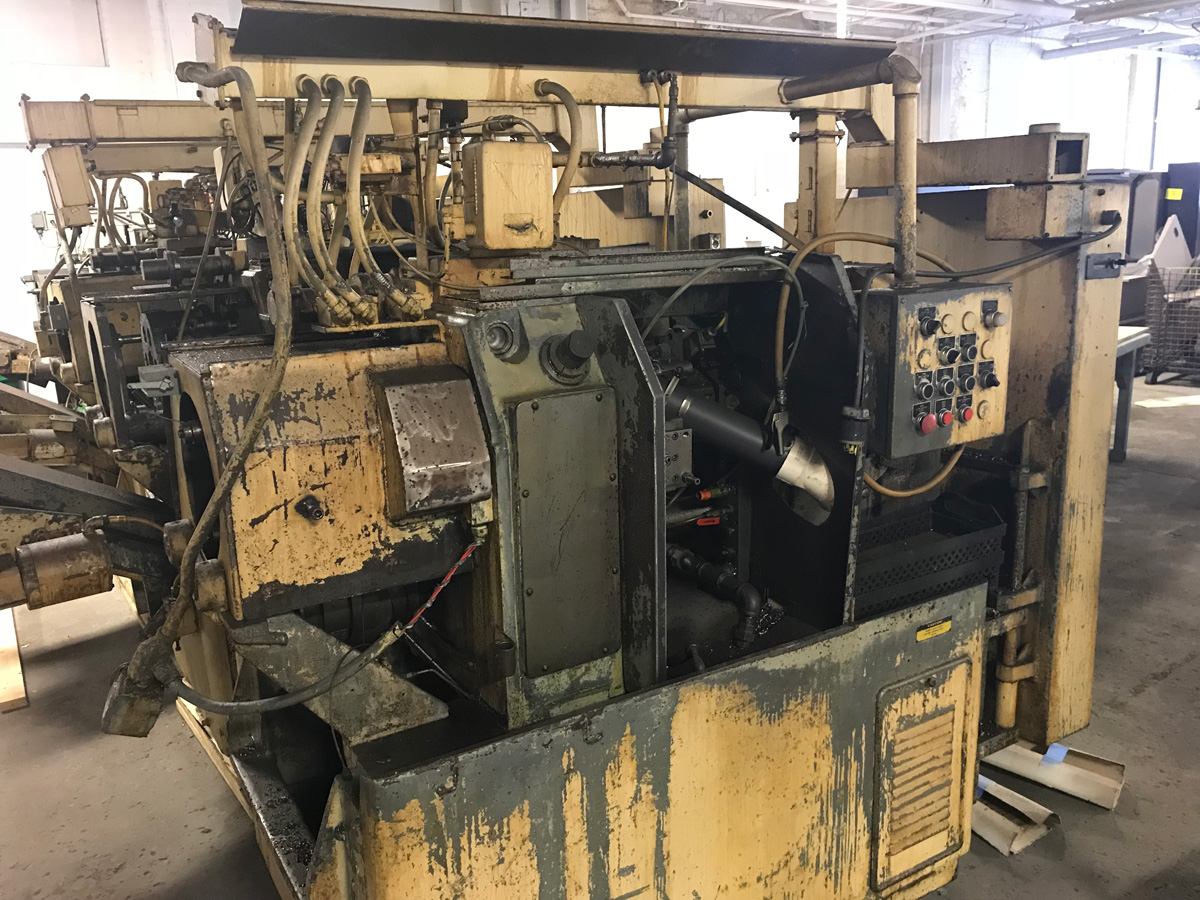

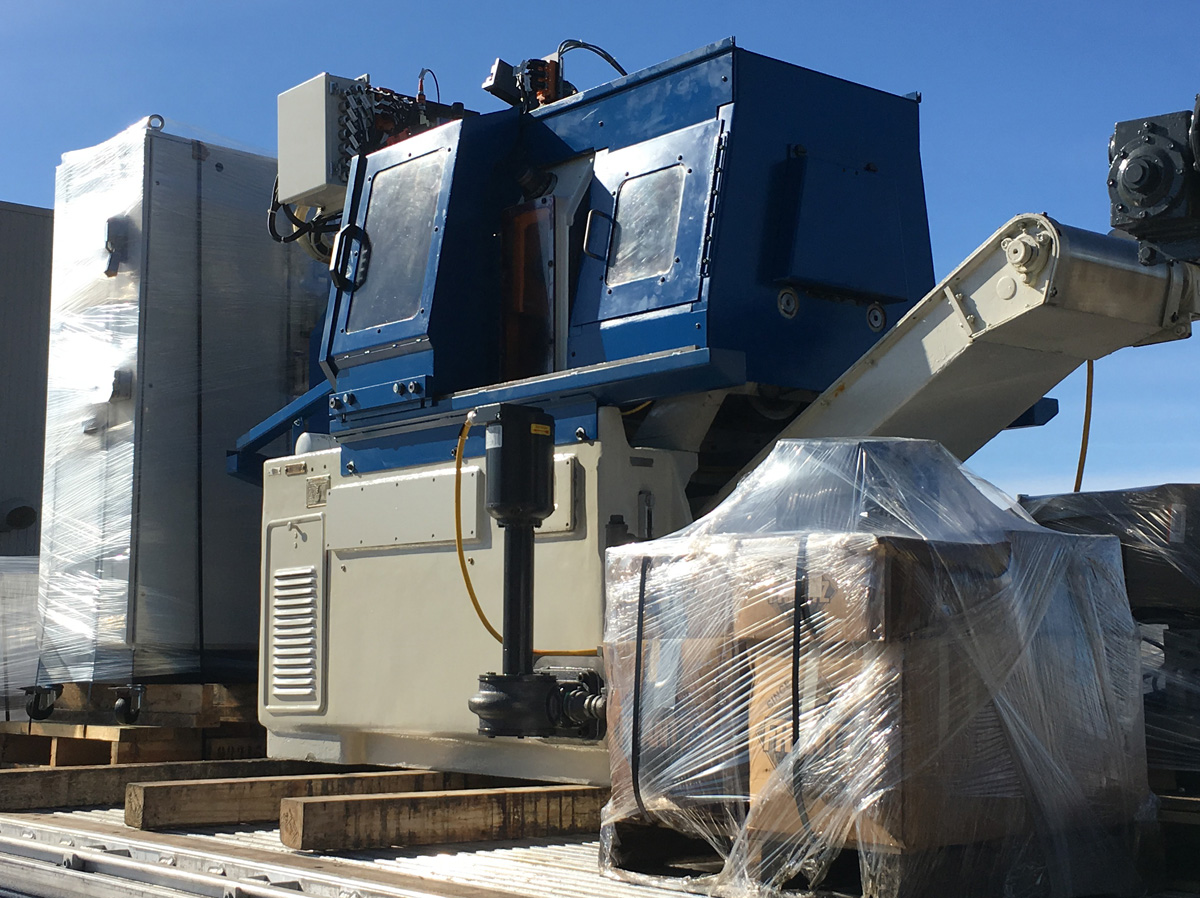

Sample pictures of Acme Gridley 2-3/8" HSC-6 screw machine rebuild projects by JEM:



Request For Quote an Acme Gridley Screw Machine

Invalid Input

Invalid Input

Please enter a valid email address

Invalid Input

Invalid Input

Invalid Input

Please choose one

Please choose one

Please choose one

Please choose one

Please choose at least one

Please choose one

Please choose at least one

Please choose at lease one

Please choose one

Invalid Input

Invalid Input

(maximum file size 5MB, pdf, jpg, tif, dwg, or dxf only)

Invalid Input

Invalid Input

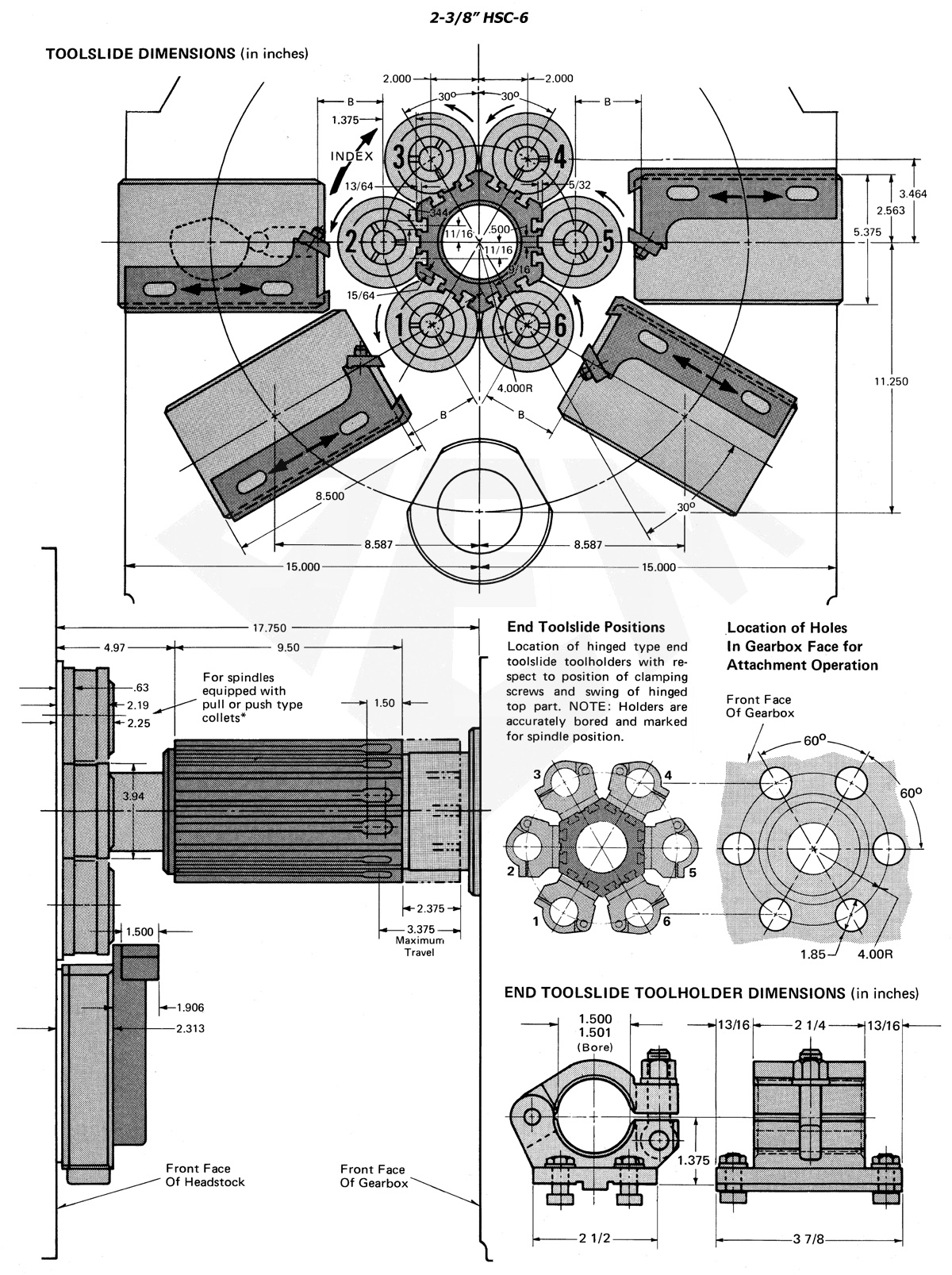

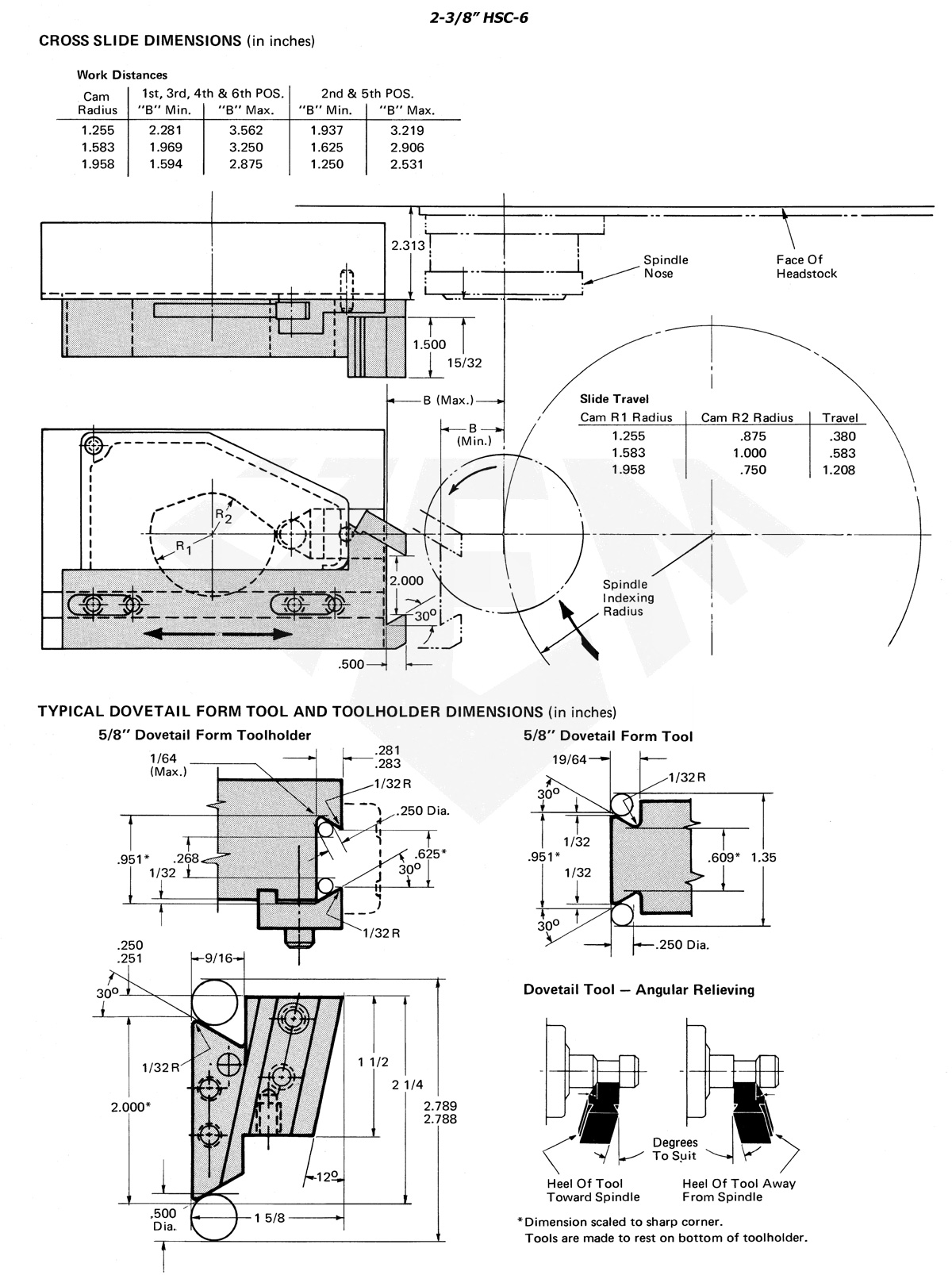

Acme Gridley 2-3/8" HSC-6 Toolslide and Cross Slide Dimensions

Acme Gridley 2-3/8" HSC-6 Specifications

Chucking Capacity - Pull Type Collet 2-3/8"
Chucking Capacity - Push Type Collet 1"
End Tool Slide Travel 4"
Upper Cross Slides Travel 1-1/4"
Intermediate Cross Slides Travel 1-1/4"
Lower Cross Slides Travel 1-1/4"
Main Motor Horsepower 15
Spindle Speed Minimum RPM 277
Spindle Speed Maximum RPM 3907
Idle Time Seconds - 210 degree machining
Idle Time Seconds - 219 degree machining
0.383
0.359
Weight of Machine - Pounds 6,900
Length of Machine 5'-6"
Length of Machine with Chip Conveyor 7'-6"
Height of Machine varies
Width of Machine 3'-4"
Lubrication Reservoir Capacity - Gallons
Lubrication Pump Flow Rate - GPM
5.2
0.8
Coolant Reservoir Capacity - Gallons
Coolant Pump Flow Rate - GPM
70
60
