Universal Threading Attachment - 7th Position

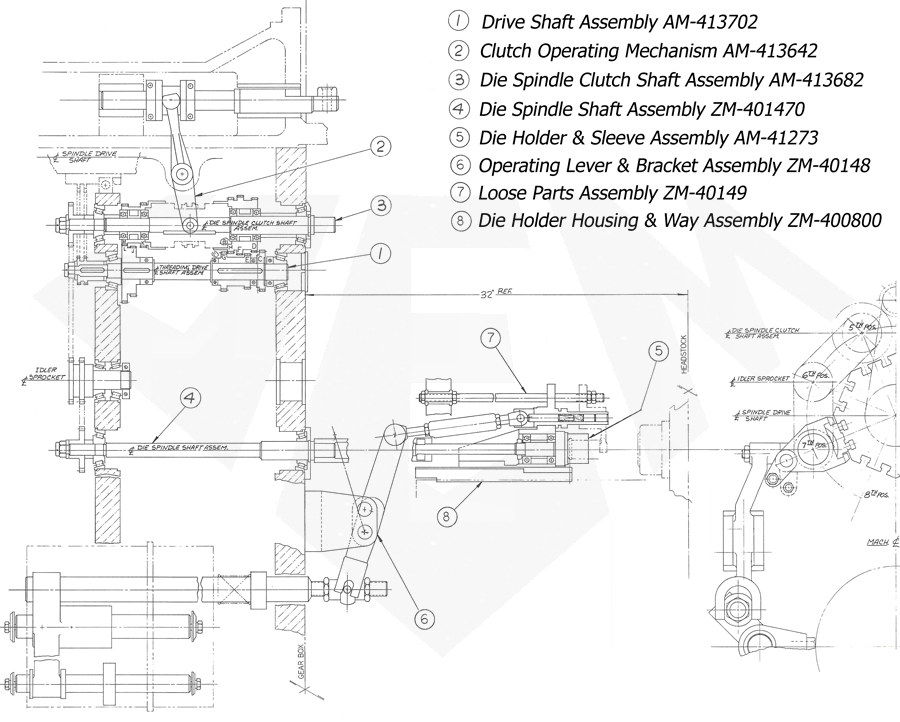

A universal threading attachment for 7th position on an Acme Gridley 1-1/4" RB-8 screw machine has eight major assemblies:

1 - Drive Shaft Assembly AM-413702
2 - Clutch Operating Mechanism AM-413642
3 - Die Spindle Clutch Shaft Assembly AM-413682
4 - Die Spindle Shaft Assembly ZM-401470
5 - Die Holder and Sleeve Assembly AM-41273
6 - Operating Lever and Bracket Assembly ZM-40148
7 - Loose Parts Assembly ZM-40149
8 - Die Holder Housing and Way Assembly ZM-400800

Below are the individual replacement parts for each assembly that make up a 7th Position Universal Threading Attachment for an Acme Gridley 1-1/4" RB-8 screw machine:


Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Drive Shaft Assembly AM-413702



Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Clutch Operating Mechanism AM-413642



Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Die Spindle Clutch Shaft Assy AM-413682



Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Die Holder Sleeve Assembly AM-41273

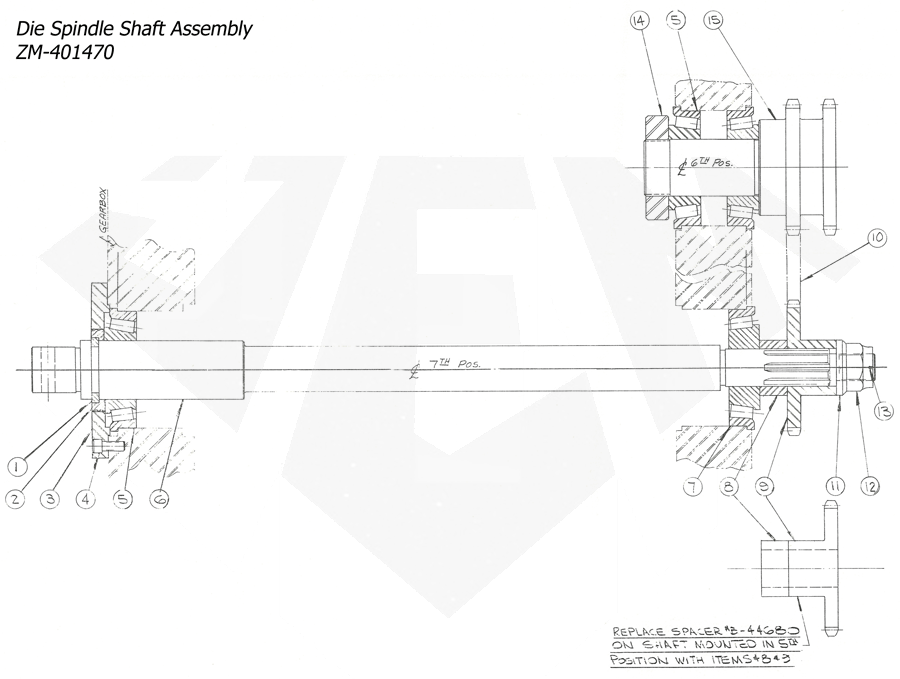

Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Die Spindle Shaft Assembly ZM-401470

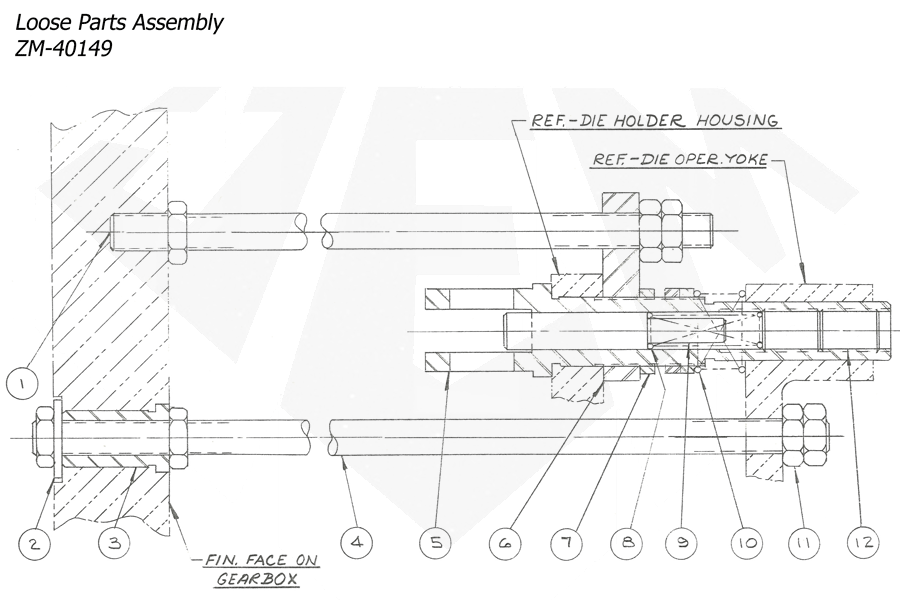

Acme Gridley 1-1/4" RB-8 Threading Attachment Replacement Parts List - Loose Parts Assembly ZM-40149




Acme Gridley 1-1/4" RB-8 Threading Reaming Replacement Parts List - Operating Lever Bracket Assembly ZM-40148
