Acme Gridley 1-1/4" RB-8

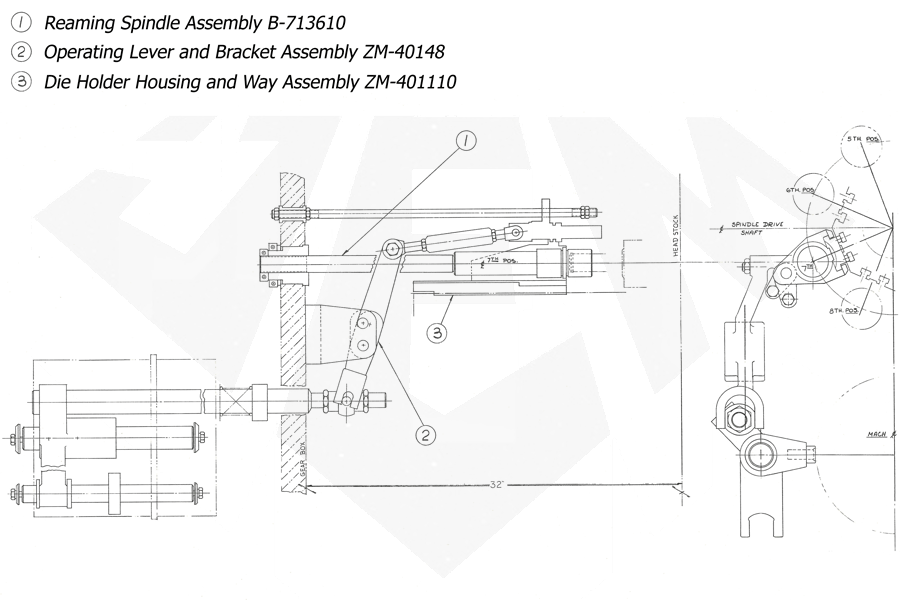

A reaming attachment for 7th position on an Acme Gridley 1-1/4" RB-8 screw machine has three major assemblies:

1148-Attachment-Reaming-7th-Master

1 - Reaming Spindle Assembly B-713610
2 - Operating Lever and Bracket Assembly ZM-40148
3 - Die Holder Housing and Way Assembly ZM-401110

Below are the individual replacement parts for each assembly that make up a 7th Position Reaming Attachment for an Acme Gridley 1-1/4" RB-8 screw machine:


1148-Attachment-Reaming-All-Positions-Spindle-Assembly

B-713610 Complete Reaming Spindle Assembly

Acme Gridley replacement part number B-713610
Product details for B-713610 Complete Reaming Spindle Assembly






B-713610 item 1 - Set Screw

Acme Gridley replacement part number 52685
Product details for B-713610 item 1 - Set Screw






B-713610 item 2 - Set Screw

Acme Gridley replacement part number 1490
Product details for B-713610 item 2 - Set Screw






B-713610 item 3 - Stop Plate

Acme Gridley replacement part number AM-41214
Product details for B-713610 item 3 - Stop Plate






B-713610 item 4 - Screw

Acme Gridley replacement part number 1101
Product details for B-713610 item 4 - Screw






B-713610 item 5 - Reaming Spindle

Acme Gridley replacement part number AM-41280
Product details for B-713610 item 5 - Reaming Spindle






B-713610 item 6 - Fitting

Acme Gridley replacement part number 50994
Product details for B-713610 item 6 - Fitting






B-713610 item 7 - Bushing

Acme Gridley replacement part number B-71287
Product details for B-713610 item 7 - Bushing






B-713610 item 8 - Spacer

Acme Gridley replacement part number A-44712
Product details for B-713610 item 8 - Spacer






B-713610 item 9 - Large Adjusting Nut Assembly

Acme Gridley replacement part number 706190
Product details for B-713610 item 9 - Large Adjusting Nut Assembly






B-713610 item 10 - Small Adjusting Nut Assembly

Acme Gridley replacement part number 15400
Product details for B-713610 item 10 - Small Adjusting Nut Assembly

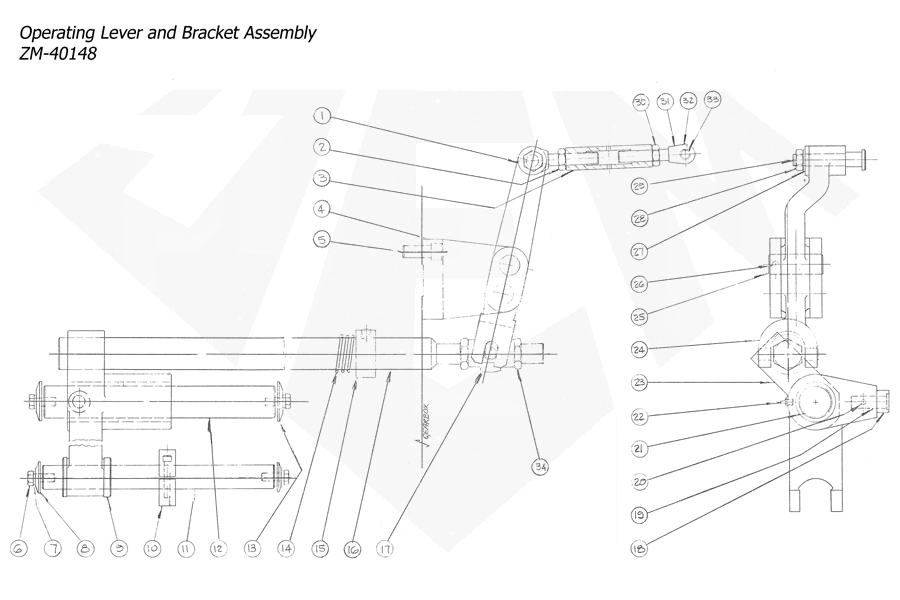

1148-Attachment-Reaming-7th-Threading-7th-Operating-Lever-Bracket-Assembly

ZM-40148 Complete Operating Lever and Bracket Assembly

Acme Gridley replacement part number ZM-40148
Product details for ZM-40148 Complete Operating Lever and Bracket Assembly






ZM-40148 item 1 - Eye Bolt

Acme Gridley replacement part number 1944
Product details for ZM-40148 item 1 - Eye Bolt






ZM-40148 item 2 - Jam Nut

Acme Gridley replacement part number 51190
Product details for ZM-40148 item 2 - Jam Nut






ZM-40148 item 3 - Connecting Rod

Acme Gridley replacement part number ZM-400250
Product details for ZM-40148 item 3 - Connecting Rod






ZM-40148 item 4 - Lever Bracket

Acme Gridley replacement part number ZM-40141
Product details for ZM-40148 item 4 - Lever Bracket






ZM-40148 item 5 - Screw

Acme Gridley replacement part number 1050
Product details for ZM-40148 item 5 - Screw






ZM-40148 item 6 - Hex Screw

Acme Gridley replacement part number 1527
Product details for ZM-40148 item 6 - Hex Screw






ZM-40148 item 7 - Lock Washer

Acme Gridley replacement part number 50968
Product details for ZM-40148 item 7 - Lock Washer






ZM-40148 item 8 - Washer

Acme Gridley replacement part number 50954
Product details for ZM-40148 item 8 - Washer






ZM-40148 item 9 - Bushing

Acme Gridley replacement part number C-17074
Product details for ZM-40148 item 9 - Bushing






ZM-40148 item 10 - Stop Collar Assembly

Acme Gridley replacement part number 15815
Product details for ZM-40148 item 10 - Stop Collar Assembly






ZM-40148 item 11 - Small Guide Shaft

Acme Gridley replacement part number AZ-40087
Product details for ZM-40148 item 11 - Small Guide Shaft






ZM-40148 item 12 - Large Guide Shaft

Acme Gridley replacement part number AZ-40088
Product details for ZM-40148 item 12 - Large Guide Shaft






ZM-40148 item 13 - Washer

Acme Gridley replacement part number 50971
Product details for ZM-40148 item 13 - Washer






ZM-40148 item 14 - Spring

Acme Gridley replacement part number XA-8
Product details for ZM-40148 item 14 - Spring






ZM-40148 item 15 - Collar Assembly

Acme Gridley replacement part number XA-2004
Product details for ZM-40148 item 15 - Collar Assembly






ZM-40148 item 16 - Operating Rod

Acme Gridley replacement part number AZ-40024
Product details for ZM-40148 item 16 - Operating Rod






ZM-40148 item 17 - Operating Rod Trunnion

Acme Gridley replacement part number AZ-84023
Product details for ZM-40148 item 17 - Operating Rod Trunnion






ZM-40148 item 18 - Roll

Acme Gridley replacement part number 3019
Product details for ZM-40148 item 18 - Roll






ZM-40148 item 19 - Roll Stud

Acme Gridley replacement part number 10164
Product details for ZM-40148 item 19 - Roll Stud






ZM-40148 item 20 - Roll Pin

Acme Gridley replacement part number 01485-22
Product details for ZM-40148 item 20 - Roll Pin






ZM-40148 item 21 - Bushing

Acme Gridley replacement part number C-17073
Product details for ZM-40148 item 21 - Bushing






ZM-40148 item 22 - Fitting

Acme Gridley replacement part number 8047
Product details for ZM-40148 item 22 - Fitting






ZM-40148 item 23 - Cam Roll Bracket

Acme Gridley replacement part number AZ-40028
Product details for ZM-40148 item 23 - Cam Roll Bracket






ZM-40148 item 24 - Operating Lever Assembly

Acme Gridley replacement part number ZM-40142
Product details for ZM-40148 item 24 - Operating Lever Assembly






ZM-40148 item 25 - Lever Pin

Acme Gridley replacement part number AZ-84031
Product details for ZM-40148 item 25 - Lever Pin






ZM-40148 item 26 - Set Screw

Acme Gridley replacement part number 1402
Product details for ZM-40148 item 26 - Set Screw






ZM-40148 item 27 - Washer

Acme Gridley replacement part number 977
Product details for ZM-40148 item 27 - Washer






ZM-40148 item 28 - Jam Nut

Acme Gridley replacement part number 51188
Product details for ZM-40148 item 28 - Jam Nut






ZM-40148 item 29 - Bolt

Acme Gridley replacement part number ZM-40099
Product details for ZM-40148 item 29 - Bolt






ZM-40148 item 30 - Hex Nut

Acme Gridley replacement part number 2846
Product details for ZM-40148 item 30 - Hex Nut






ZM-40148 item 31 - Left Hand Eye Bolt

Acme Gridley replacement part number 1943
Product details for ZM-40148 item 31 - Left Hand Eye Bolt






ZM-40148 item 32 - Set Screw

Acme Gridley replacement part number 50790
Product details for ZM-40148 item 32 - Set Screw






ZM-40148 item 33 - Pin

Acme Gridley replacement part number XA-1740
Product details for ZM-40148 item 33 - Pin






ZM-40148 item 34 - Adjusting Nut

Acme Gridley replacement part number XA-1818
Product details for ZM-40148 item 34 - Adjusting Nut






1148-Attachment-Reaming-3rd-6th-7th-Die-Holder-Housing-Way-Assembly

ZM-401110 Complete Die Holder Housing and Way Assembly

Acme Gridley replacement part number ZM-401110
Product details for ZM-401110 Complete Die Holder Housing and Way Assembly






ZM-401110 item 1 - Fitting

Acme Gridley replacement part number 8092
Product details for ZM-401110 item 1 - Fitting






ZM-401110 item 2 - Tee Nut

Acme Gridley replacement part number 14801
Product details for ZM-401110 item 2 - Tee Nut






ZM-401110 item 3 - Screw

Acme Gridley replacement part number 1058
Product details for ZM-401110 item 3 - Screw






ZM-401110 item 4 - Die Holder Housing Assembly

Acme Gridley replacement part number ZM-400411
Product details for ZM-401110 item 4 - Die Holder Housing Assembly






ZM-401110 item 5 - Toolslide Way

Acme Gridley replacement part number ZM-400541
Product details for ZM-401110 item 5 - Toolslide Way






ZM-401110 item 6 - Screw

Acme Gridley replacement part number 1150
Product details for ZM-401110 item 6 - Screw






ZM-401110 item 7 - Guide Rod

Acme Gridley replacement part number ZM-40128
Product details for ZM-401110 item 7 - Guide Rod






ZM-401110 item 8 - Hex Nut

Acme Gridley replacement part number 4858
Product details for ZM-401110 item 8 - Hex Nut





Acme Gridley 1-1/4" RB8, 1-5/8" RBN8, 1-5/8" RA6, 1-5/8" RB6, 2" RB6 Spindle Speed & Feed Gears

Feed change gears 96 teeth per set
Spindle speed gears 96 teeth per set
2"-6 spline, 1-1/2" face, 8/10 pitch helical

NUMBER OF
TEETH
PART NUMBER RH OR LH
22 82242 or NA16-22R R
24 82243 or NA16-24R R
26 82244 or NA16-26R R
28 82245 or NA16-28R R
30 82246 or NA16-30R R
32 82247 or NA16-32R R
34 82248 or NA16-34R R
36 82249 or NA16-36R R
38 82250 or NA16-38R R
40 82251 or NA16-40R R
42 82252 or NA16-42R R
44 82253 or NA16-44R R
46 82254 or NA16-46R R
48 82255 or NA16-48R R
50 82256 or NA16-50R R
52 82257 or NA16-52R R
54 86547 or NA16-54R R
56 86548 or NA16-56R R
58 NA16-58R R
44 NA16-44L L
46 NA16-46L L
48 A-38254 or NA16-48L L
50 A-38256 or NA16-50L L
52 82388 or NA16-52L L
54 82258 or NA16-54L L
56 82259 or NA16-56L L
58 82260 or NA16-58L L
60 82261 or NA16-60L L
62 82262 or NA16-62L L
64 82263 or NA16-64L L
66 82534 or NA16-66L L
68 82535 or NA16-68L L
70 82536 or NA16-70L L
72 82537 or NA16-72L L
74 82538 or NA16-74L L
76 82539 or NA16-76L L
78 82540 or NA16-78L L
80 82541 or NA16-80L L
82 82543 or NA16-82L L
84 86240 or NA16-84L L
86 86241 or NA16-86L L
88 86242 or NA16-88L L
