8" RPA-8

8" RPA-8 Automatic Multi Spindle Lathes

We have in stock National Acme 8" RPA-8 automatic screw machines for sale, and can rebuild, retool, and/or retrofit any of our used Acme Gridley screw machines to specifically meet your needs. JEM Automatics guarantees the performance of all Acme Gridley screw machines we rebuild. Optionally, turnkey setup services can be provided, where we would supply the machine fully tooled and already proven to produce your part automatically and within tolerance before it is delivered to your plant.

The Acme Gridley 8" RPA8 screw machine is an 8 spindle automatic lathe hydraulic chucker machine. Standard multispindle chucking machine specifications and capacities shown are for reference only, as a custom retrofit by JEM may improve upon or modify these specifications. Many of the National Acme standard equipment options and attachments available to configure an Acme Gridley 8" RPA8 screw machine are listed here. Please use our quick RFQ form below and we will review your specific requirements and follow up with a machinery quotation and/or recommendation for your consideration.



Acme Gridley 8" RPA-8 Screw Machine Equipment and Attachments

(equipped based on your tooling setup)

Base Component Options:

  • Lower Cross Slides - 3rd & 4th position
  • Upper Cross Slides - 7th & 8th position
  • Intermediate Cross Slide - 6th Position Shelf Slide
  • End Tool Slide Drill Holders
    • Specify - 1st, 2nd, 3rd, 4th, 5th, 6th, 7th, or 8th position
  • One Set of Cams and Gears as mounted
  • One Set of National Acme style Splash Guards
    • Optional JEM Custom Designed High Quality Guarding
  • Chip Conveyor
  • Coolant Pump
  • Hydraulic System
  • Main Drive Motor and Associated Push Button Controls
    • Specify Line Voltage - 240 or 480 VAC 3-phase standard


Available 8" RPA-8 Attachment Options:

  • Threading / Tapping Attachment in 7th or 8th Position
    • Air Trip Universal Threading Attachment, or Plain Threading Attachment
    • Optional Upgrade to JEM Linear Sensor 0.001" Tapping Control
  • Accelerated Reaming Attachment in 7th or 8th Position
  • High Speed Drilling Attachment


Other Possible Upgrades & Screw Machine Retrofits:

  • Water Soluble Coolant & Spindle Carrier Seal Retrofit
  • TechControl Electrical Upgrade Package for Mechanical Machines
  • TechDrive Servo Machine Conversion with FANUC CNC Controls
    • Single Axis Servo Cross Slides
    • Compound 2-Axis CNC Slides
  • Automatic Grease or Lube System for Maintenance Points

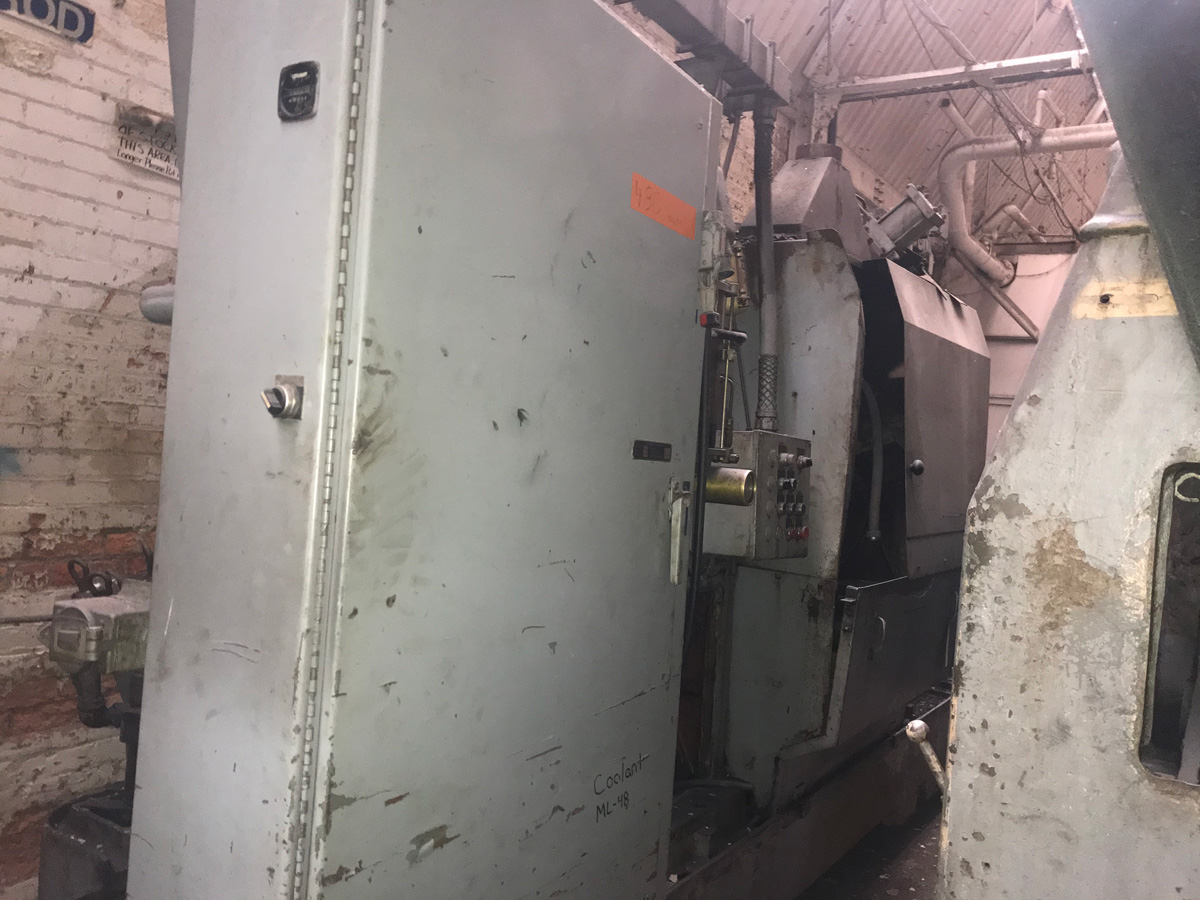

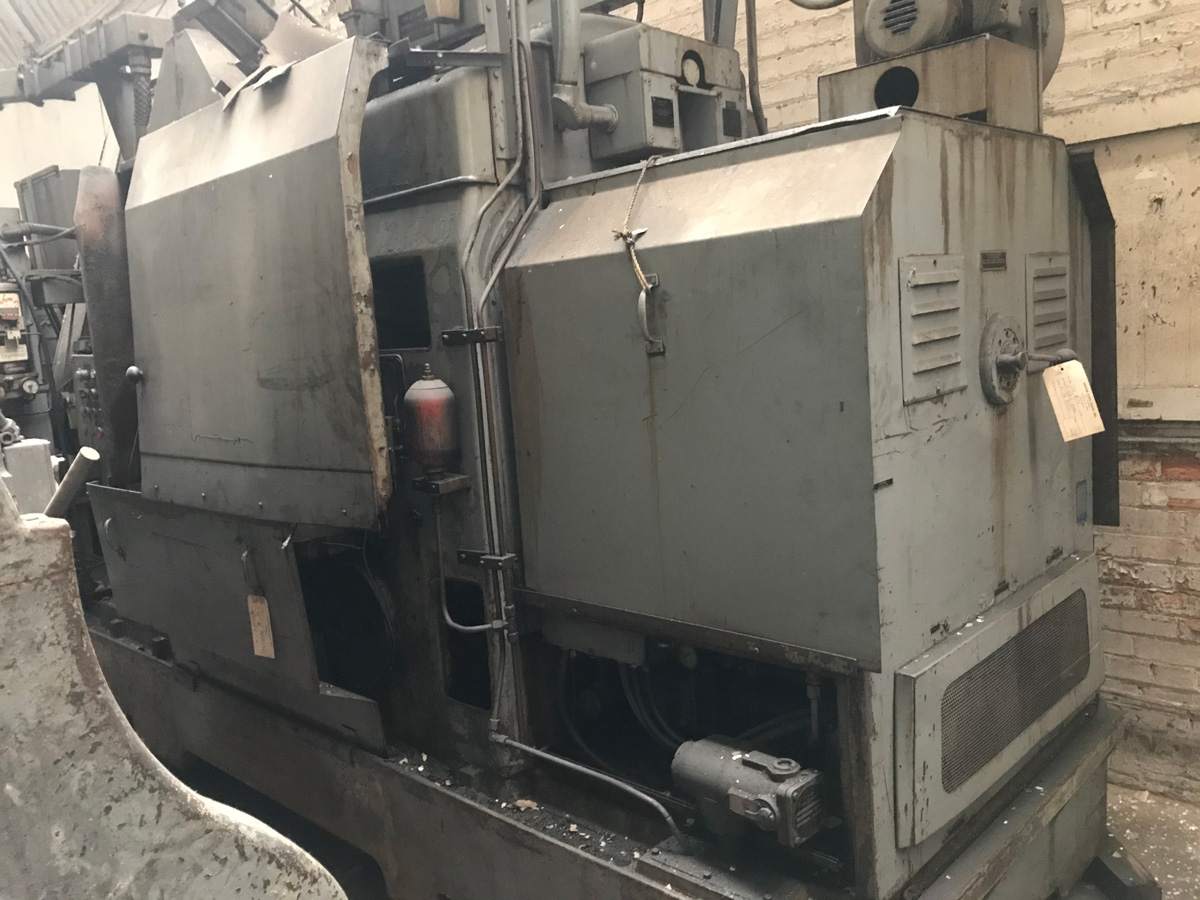

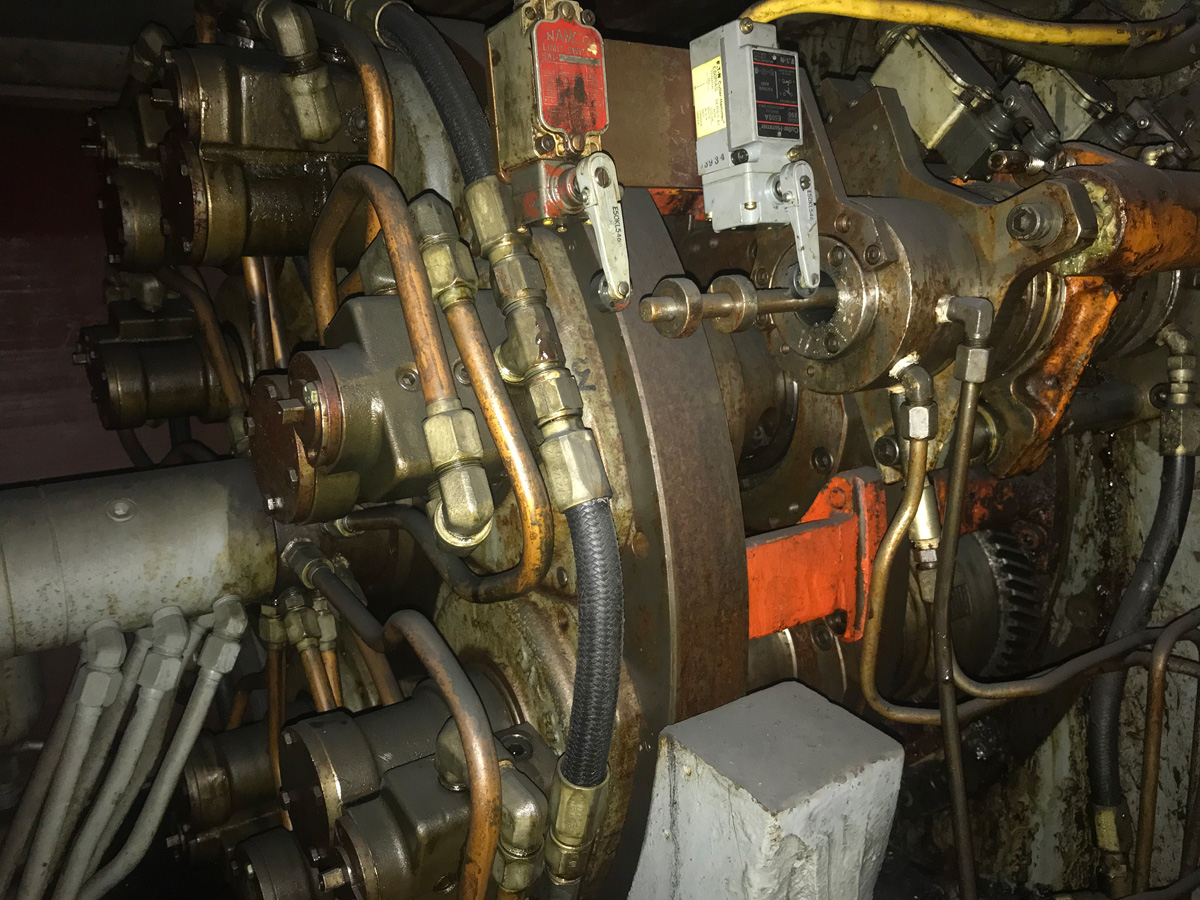

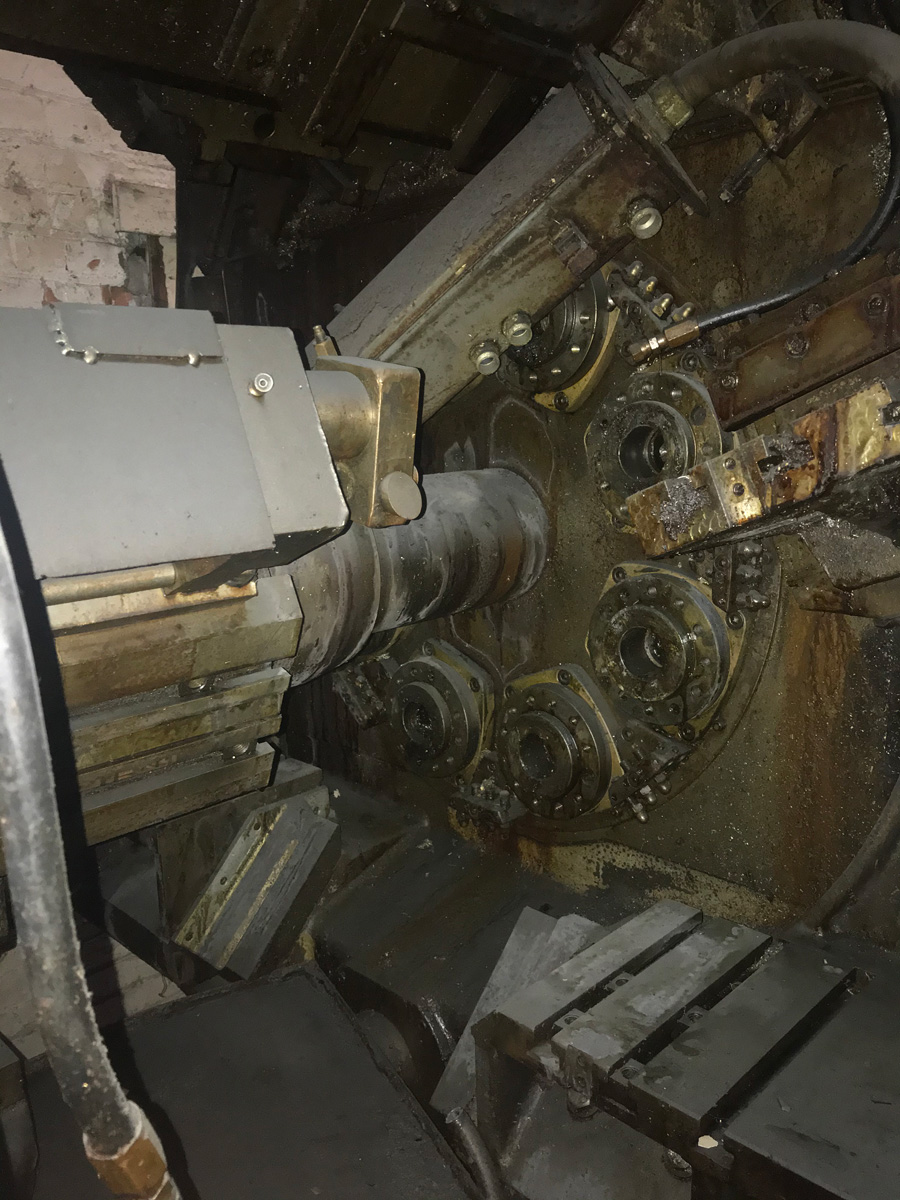

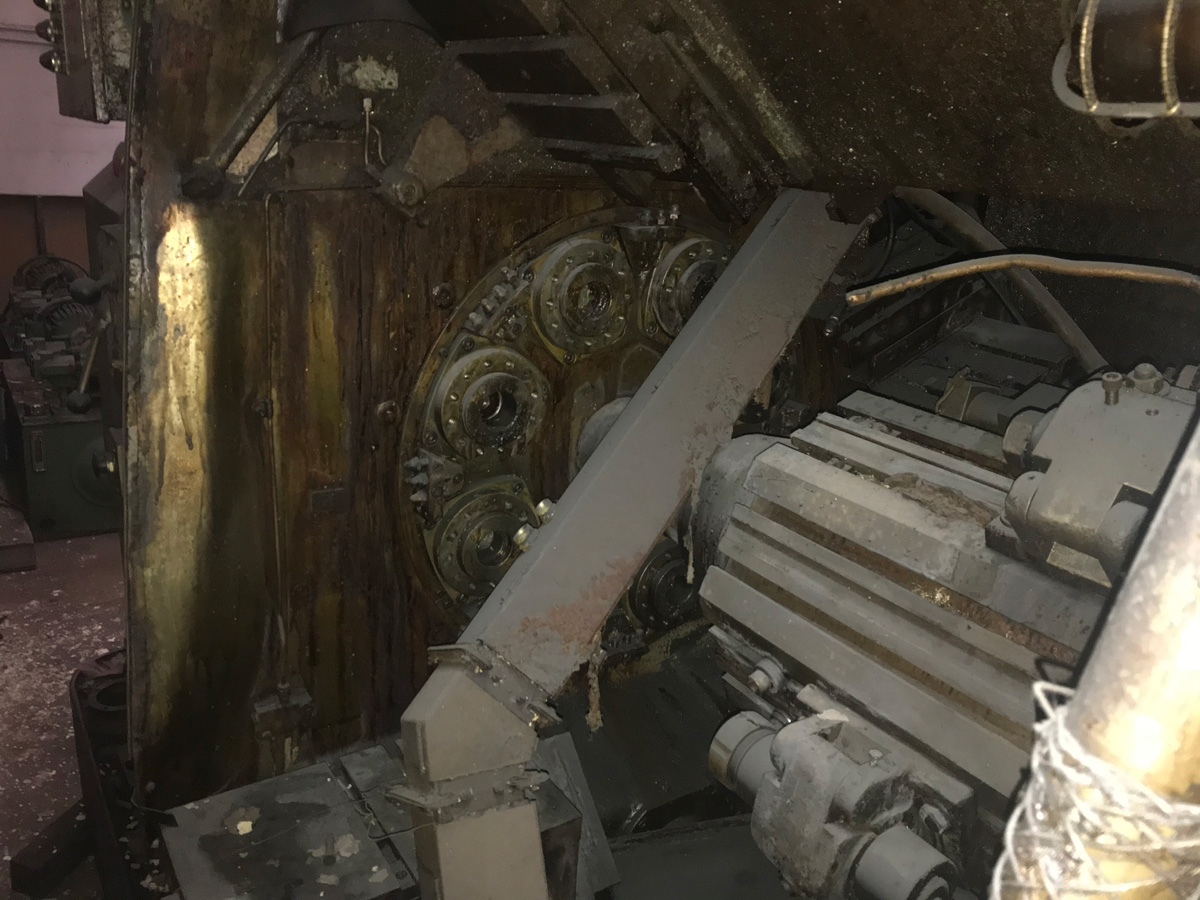

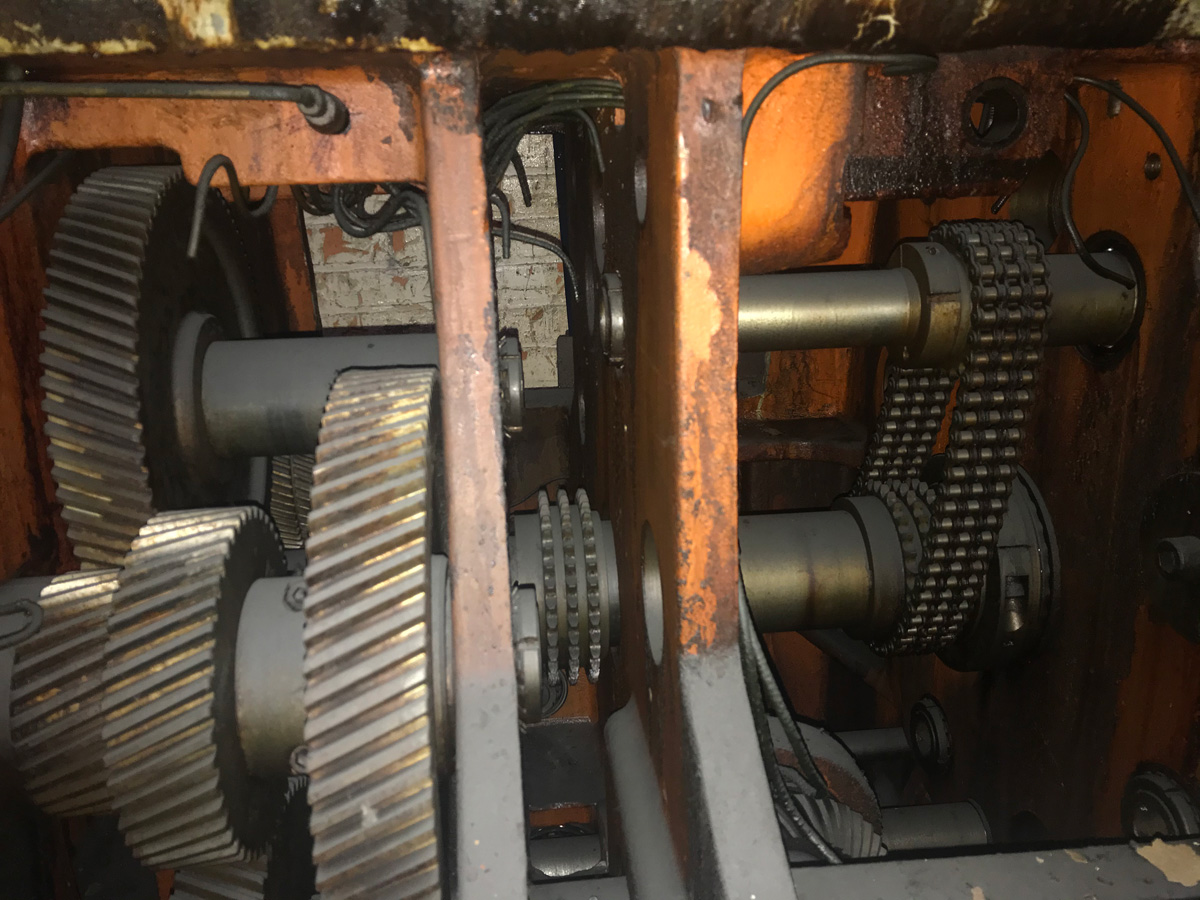

Sample pictures of used Acme Gridley 8" RPA-8 screw machines in stock for rebuild or retrofit:



Request For Quote an Acme Gridley Screw Machine

Invalid Input

Invalid Input

Please enter a valid email address

Invalid Input

Invalid Input

Invalid Input

Please choose one

Please choose one

Please choose one

Please choose one

Please choose at least one

Please choose one

Please choose at least one

Please choose at lease one

Please choose one

Invalid Input

Invalid Input

(maximum file size 5MB, pdf, jpg, tif, dwg, or dxf only)

Invalid Input

Invalid Input

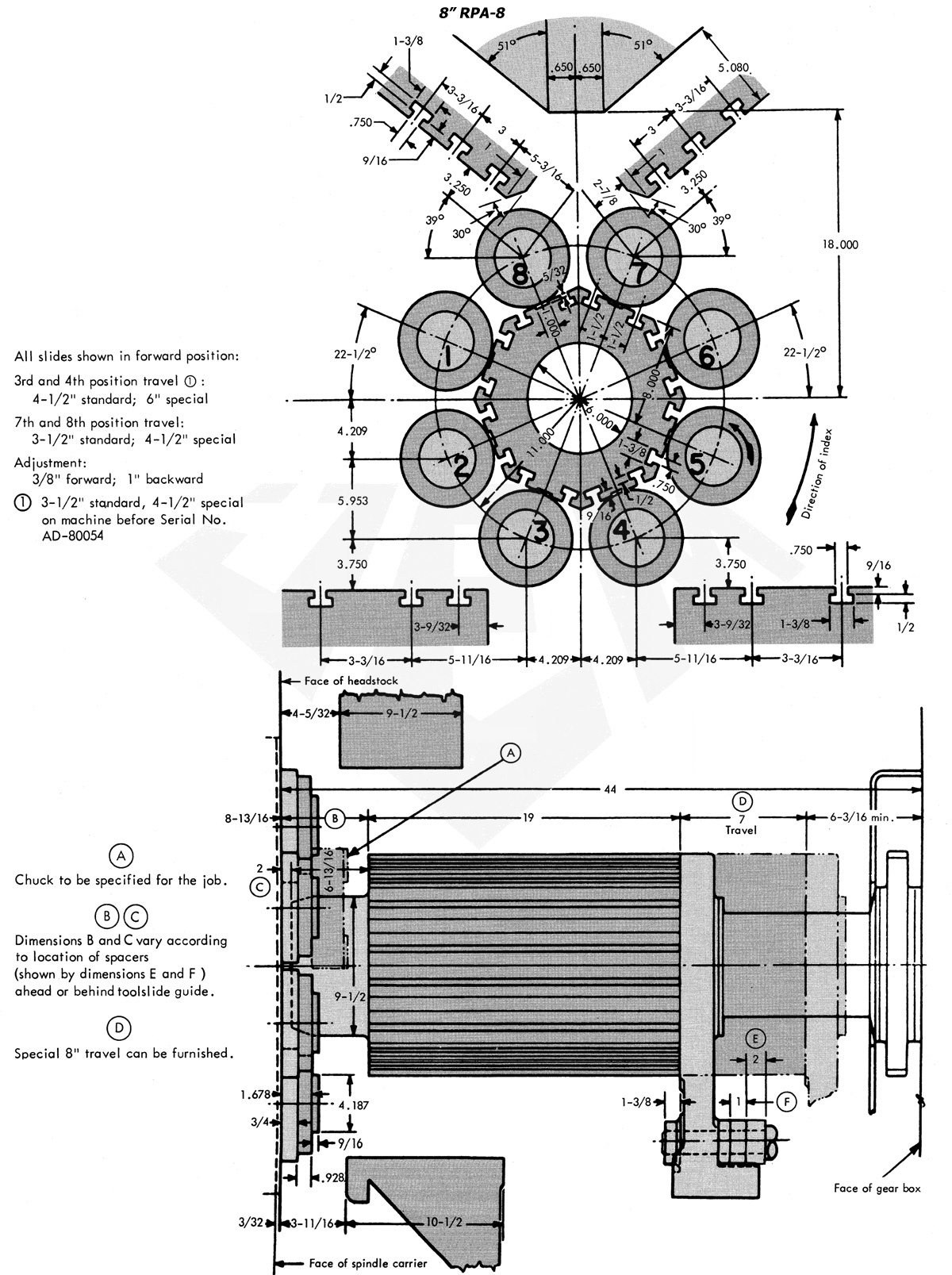

Acme Gridley 8" RPA-8 Toolslide and Cross Slide Dimensions

Acme Gridley 8" RPA-8 Specifications

Nominal O.D. of Chuck 8"
End Tool Slide Travel - Standard
End Tool Slide Travel - Special
7"
8"
Upper Cross Slides Travel - Standard
Upper Cross Slides Travel - Special
3-1/2"
4-1/2"
Lower Cross Slides Travel - Standard
Lower Cross Slides Travel - Special
4-1/2"
6"
Main Motor Horsepower 60
Spindle Speed Minimum RPM - Single Index
Spindle Speed Minimum RPM - Double Index
54
38
Spindle Speed Maximum RPM - Single Index
Spindle Speed Maximum RPM - Double Index
913
637
Idle Time Seconds - Single Index
Idle Time Seconds - Double Index
3.7
5.3
Weight of Machine - Pounds 36,350
Length of Machine 13'
Height of Machine varies
Width of Machine 4'-9"
Lubrication Reservoir Capacity - Gallons
Lubrication Pump Flow Rate - GPM
30
3
Coolant Reservoir Capacity - Gallons
Coolant Pump Flow Rate - GPM
175
60
