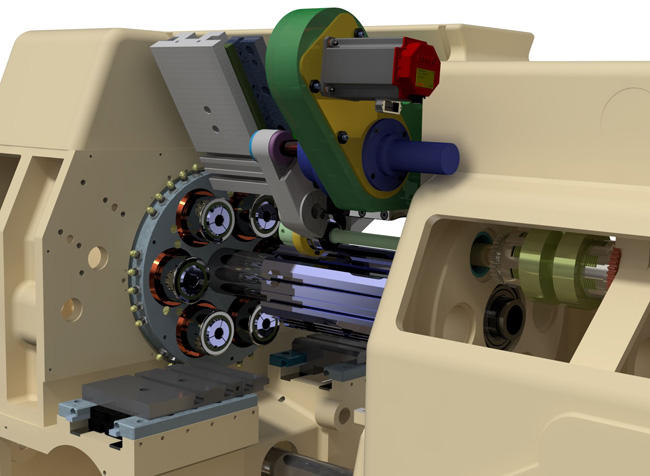

CNC Threading / CNC Reaming Attachment

Now you can have "lead screw" threading on your Acme Gridley!

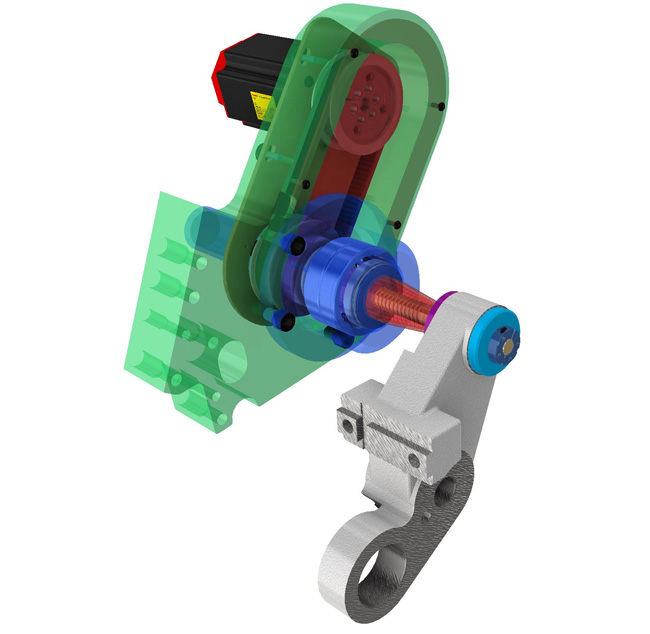

Servo Threading Attachment / Servo Reaming Attachment

  • Uses standard die slide base and block
  • Compatible with standard air trip threading clutch shaft or reaming spindle
  • Heavy duty die hanger with mount for optional air cylinder die head trip
  • Fully enclosed with external lubrication for ball nut and thrust bearings
  • Conversational programming with FANUC CNC control and JEM developed front end software for multispindles
  • Servo motor encoder feedback permits safely programming short return strokes, allowing shorter cycle times











Interested in our CNC Threading / CNC Reaming Attachment? Simply fill out and submit the short form below - we will then review your specific requirements and follow up with a quotation and/or recommendation for your consideration.

Request For Quote our CNC Threading CNC Reaming Attachment
