Servo Arbor Milling Attachment

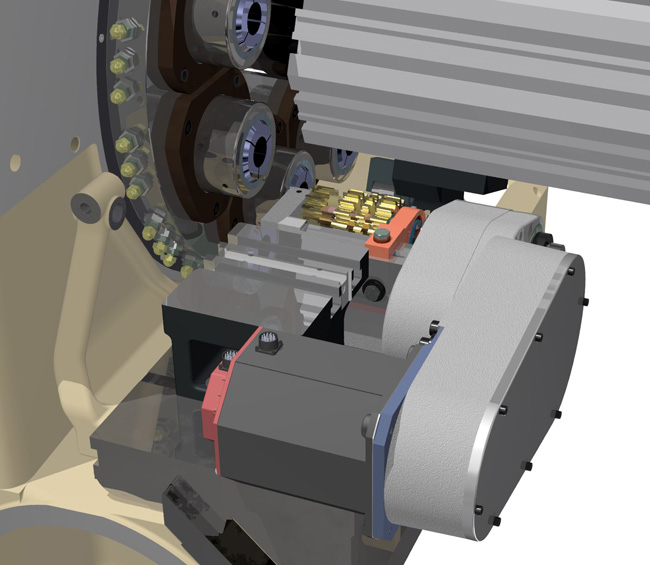

Heavy duty servo driven arbor milling attachment for 1st position cross slide on 6 or 8 spindle RB model Acme Gridley screw machines.

Servo Arbor Milling Attachment

  • Alternative solution for rough forming gummy, difficult materials.
  • Up to 5 HP servo motor drive with variable speed.
  • Use with cutters 1.0" bore up to 4.0" diameter.
  • Stack cutters of different diameters and forms up to 5.0" wide.
  • Easy adjustment of diameter and taper.

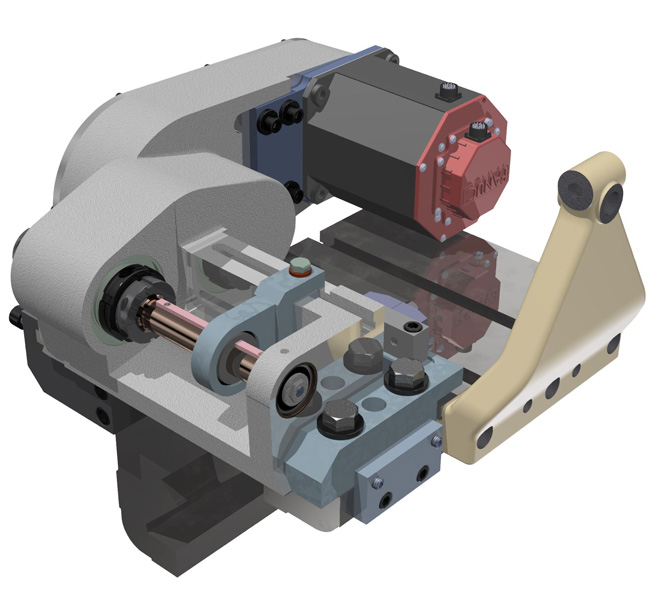

  • Modified cross slide can be equipped with replaceable "tees" for mounting standard tool holders when not using the arbor mill attachment.
  • When used in conjunction with an encoder on the spindle drive (standard with TechDrive) can be used as a polygon milling attachment.

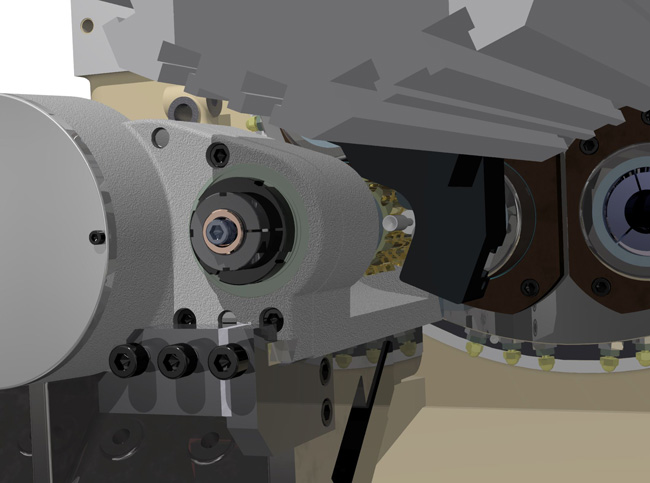

  • Optional custom roll support for milling long parts or small diameter material.













Interested in our Servo Arbor Milling Cross Slide Attachment? Simply fill out and submit the short form below - we will then review your specific requirements and follow up with a quotation and/or recommendation for your consideration.
