Acme Gridley 1-1/4" RB-8

A pick-off attachment for 7th position on an Acme Gridley 1-1/4" RB-8 screw machine has five major assemblies:

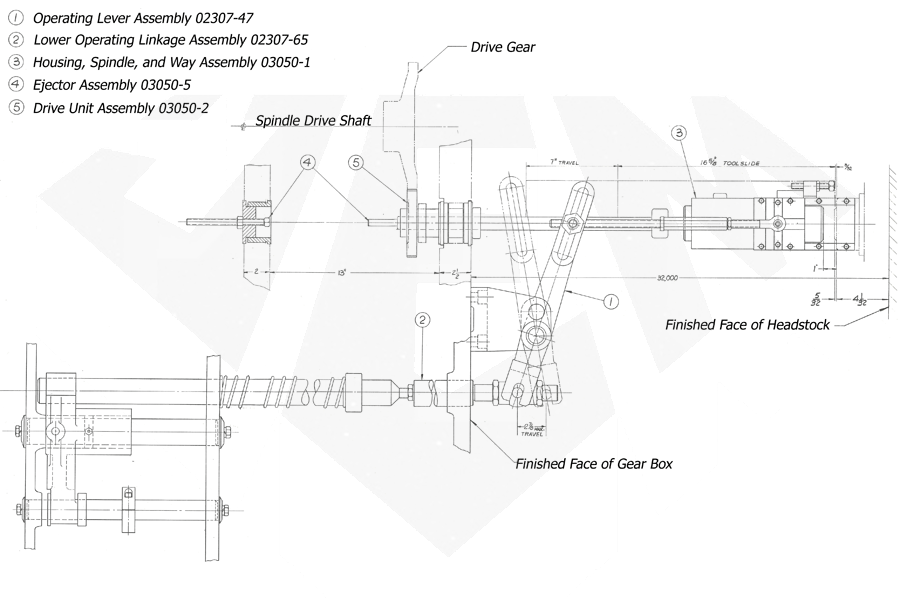

1148-Attachment-Pickoff-7th-Master

1 - Operating Lever Assembly 02307-47
2 - Lower Operating Linkage Assembly 02307-65
3 - Housing, Spindle, and Way Assembly 03050-1

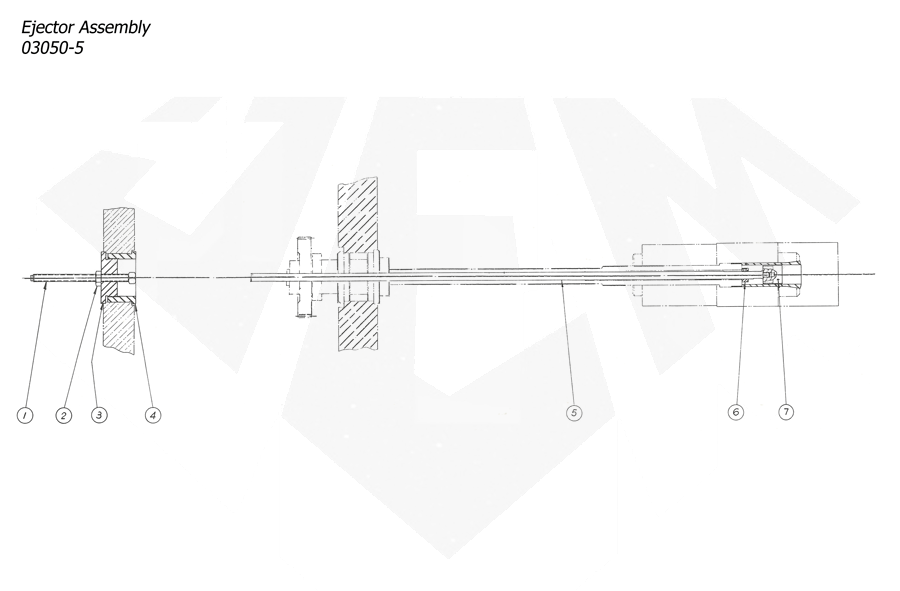

4 - Ejector Assembly 03050-5

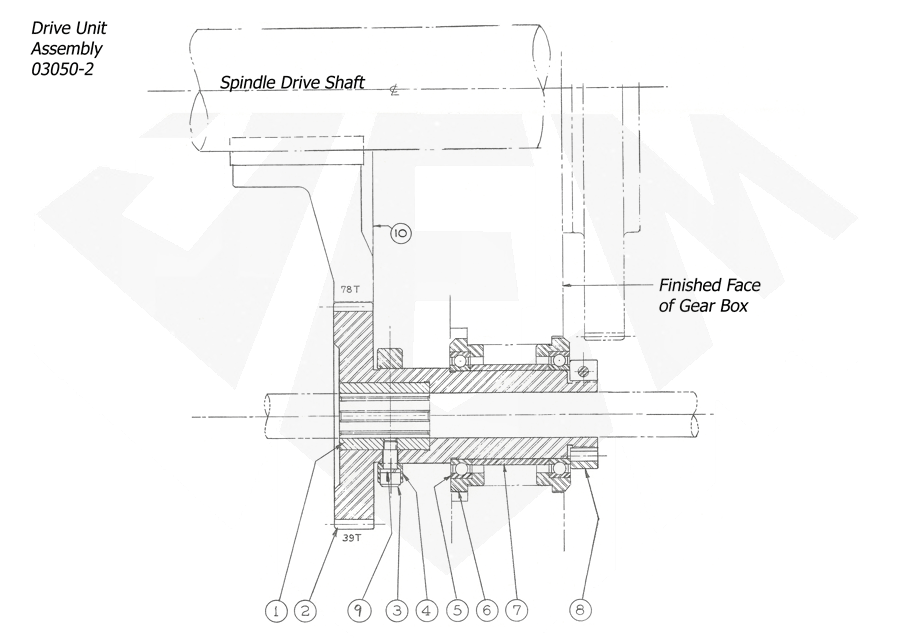

5 - Drive Unit Assembly 03050-2

Below are the individual replacement parts for each assembly that make up a 7th Position Pick-Off Attachment for an Acme Gridley 1-1/4" RB-8 screw machine:

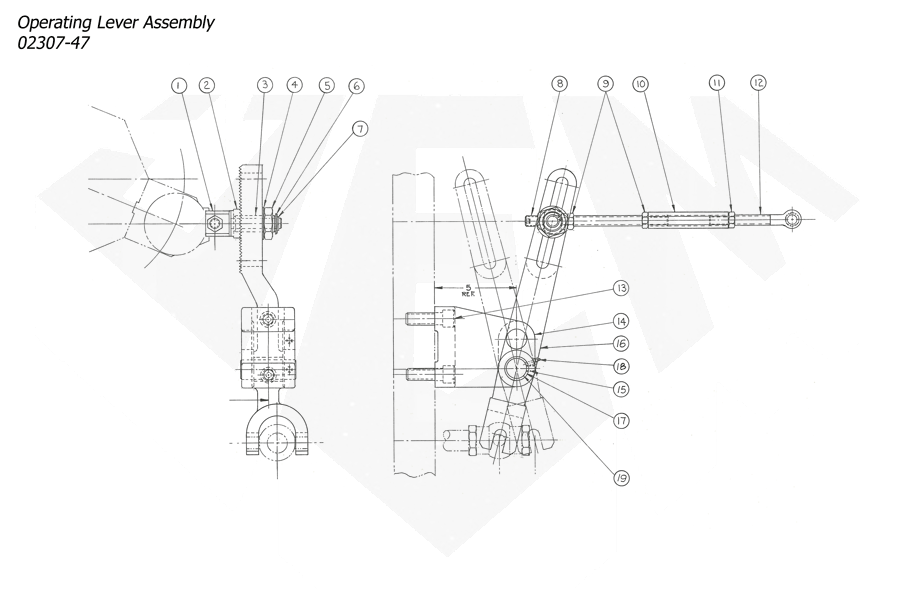

1148-Attachment-Pickoff-7th-1-Operating-Lever-Assembly

02307-47 Complete Operating Lever Assembly

Acme Gridley replacement part number 02307-47
Product details for 02307-47 Complete Operating Lever Assembly






02307-47 item 1 - Pivot Pin

Acme Gridley replacement part number 02069-36
Product details for 02307-47 item 1 - Pivot Pin






02307-47 item 2 - Serrated Washer

Acme Gridley replacement part number 02069-38
Product details for 02307-47 item 2 - Serrated Washer






02307-47 item 3 - Bushing

Acme Gridley replacement part number 02069-37
Product details for 02307-47 item 3 - Bushing






02307-47 item 4 - Washer

Acme Gridley replacement part number 02069-51
Product details for 02307-47 item 4 - Washer






02307-47 item 5 - Nut

Acme Gridley replacement part number 51209
Product details for 02307-47 item 5 - Nut






02307-47 item 6 - Washer

Acme Gridley replacement part number W-406
Product details for 02307-47 item 6 - Washer






02307-47 item 7 - Truarc Ring

Acme Gridley replacement part number 02502-22
Product details for 02307-47 item 7 - Truarc Ring






02307-47 item 8 - Connecting Screw

Acme Gridley replacement part number 02307-51
Product details for 02307-47 item 8 - Connecting Screw






02307-47 item 9 - Nut

Acme Gridley replacement part number 51650
Product details for 02307-47 item 9 - Nut






02307-47 item 10 - Connecting Nut

Acme Gridley replacement part number ZM-70025
Product details for 02307-47 item 10 - Connecting Nut






02307-47 item 11 - Left Hand Nut

Acme Gridley replacement part number A-1320
Product details for 02307-47 item 11 - Left Hand Nut






02307-47 item 12 - Front Clevis

Acme Gridley replacement part number 02069-40
Product details for 02307-47 item 12 - Front Clevis






02307-47 item 13 - Screw

Acme Gridley replacement part number 1050
Product details for 02307-47 item 13 - Screw






02307-47 item 14 - Bracket

Acme Gridley replacement part number 03050-4
Product details for 02307-47 item 14 - Bracket






02307-47 item 15 - Set Screw

Acme Gridley replacement part number 1402
Product details for 02307-47 item 15 - Set Screw






02307-47 item 16 - Operating Lever

Acme Gridley replacement part number 03021-3
Product details for 02307-47 item 16 - Operating Lever






02307-47 item 17 - Bushing

Acme Gridley replacement part number 52132
Product details for 02307-47 item 17 - Bushing






02307-47 item 18 - Fitting

Acme Gridley replacement part number 15655
Product details for 02307-47 item 18 - Fitting






02307-47 item 19 - Pin

Acme Gridley replacement part number AZ-84031
Product details for 02307-47 item 19 - Pin

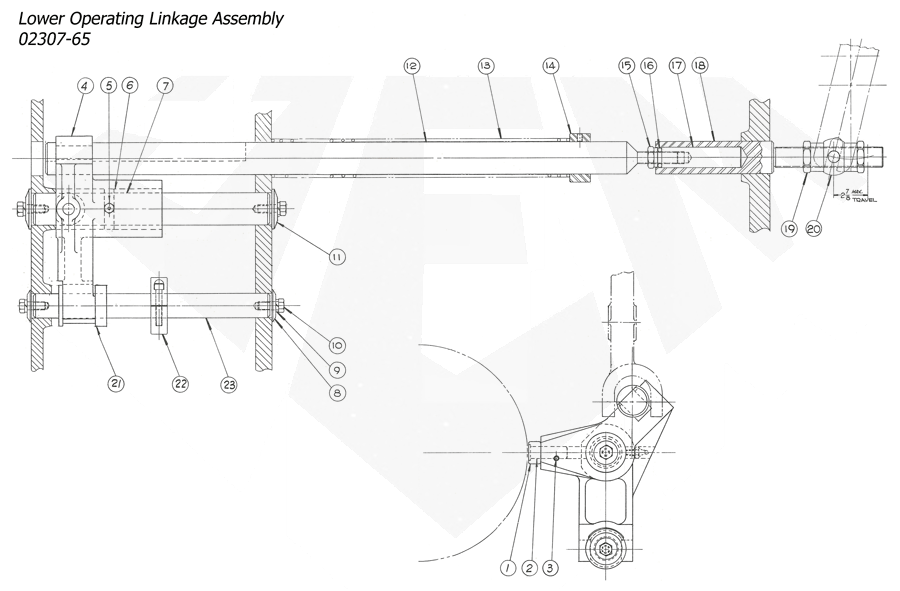

1148-Attachment-Pickoff-7th-2-Lower-Operating-Linkage

02307-65 Complete Lower Operating Linkage Assembly

Acme Gridley replacement part number 02307-65
Product details for 02307-65 Complete Lower Operating Linkage Assembly






02307-65 item 1 - Cam Roll

Acme Gridley replacement part number 3019
Product details for 02307-65 item 1 - Cam Roll






02307-65 item 2 - Cam Roll Stud

Acme Gridley replacement part number 10164
Product details for 02307-65 item 2 - Cam Roll Stud






02307-65 item 3 - Taper Pin

Acme Gridley replacement part number 301
Product details for 02307-65 item 3 - Taper Pin






02307-65 item 4 - Cam Roll Bracket

Acme Gridley replacement part number TF-945754
Product details for 02307-65 item 4 - Cam Roll Bracket






02307-65 item 5 - Grease Fitting

Acme Gridley replacement part number 8047
Product details for 02307-65 item 5 - Grease Fitting






02307-65 item 6 - Bushing

Acme Gridley replacement part number C-17073
Product details for 02307-65 item 6 - Bushing






02307-65 item 7 - Cam Bracket Guide Shaft

Acme Gridley replacement part number AZ-40088
Product details for 02307-65 item 7 - Cam Bracket Guide Shaft






02307-65 item 8 - Bevel Washer

Acme Gridley replacement part number 50954
Product details for 02307-65 item 8 - Bevel Washer






02307-65 item 9 - Lockwasher

Acme Gridley replacement part number 2498
Product details for 02307-65 item 9 - Lockwasher






02307-65 item 10 - Hex Screw

Acme Gridley replacement part number 1527
Product details for 02307-65 item 10 - Hex Screw






02307-65 item 11 - Bevel Washer

Acme Gridley replacement part number 50971
Product details for 02307-65 item 11 - Bevel Washer






02307-65 item 12 - Operating Rod

Acme Gridley replacement part number 02307-66
Product details for 02307-65 item 12 - Operating Rod






02307-65 item 13 - Spring

Acme Gridley replacement part number XA-8
Product details for 02307-65 item 13 - Spring






02307-65 item 14 - Collar Assembly

Acme Gridley replacement part number XA-2004
Product details for 02307-65 item 14 - Collar Assembly






02307-65 item 15 - Lock Nut

Acme Gridley replacement part number XA-1894
Product details for 02307-65 item 15 - Lock Nut






02307-65 item 16 - Shear Pin

Acme Gridley replacement part number XA-1572
Product details for 02307-65 item 16 - Shear Pin






02307-65 item 17 - Safety Drive Plug

Acme Gridley replacement part number AZ-70223
Product details for 02307-65 item 17 - Safety Drive Plug






02307-65 item 18 - Safety Link Sleeve

Acme Gridley replacement part number 02307-67
Product details for 02307-65 item 18 - Safety Link Sleeve






02307-65 item 19 - Adjusting Nut

Acme Gridley replacement part number XA-1818
Product details for 02307-65 item 19 - Adjusting Nut






02307-65 item 20 - Operating Rod Trunnion

Acme Gridley replacement part number AZ-84023
Product details for 02307-65 item 20 - Operating Rod Trunnion






02307-65 item 21 - Cam Roll Bracket Bushing

Acme Gridley replacement part number TF-945755
Product details for 02307-65 item 21 - Cam Roll Bracket Bushing






02307-65 item 22 - Stop Collar Assembly

Acme Gridley replacement part number 15815
Product details for 02307-65 item 22 - Stop Collar Assembly






02307-65 item 23 - Cam Bracket Guide Shaft

Acme Gridley replacement part number AZ-40087
Product details for 02307-65 item 23 - Cam Bracket Guide Shaft

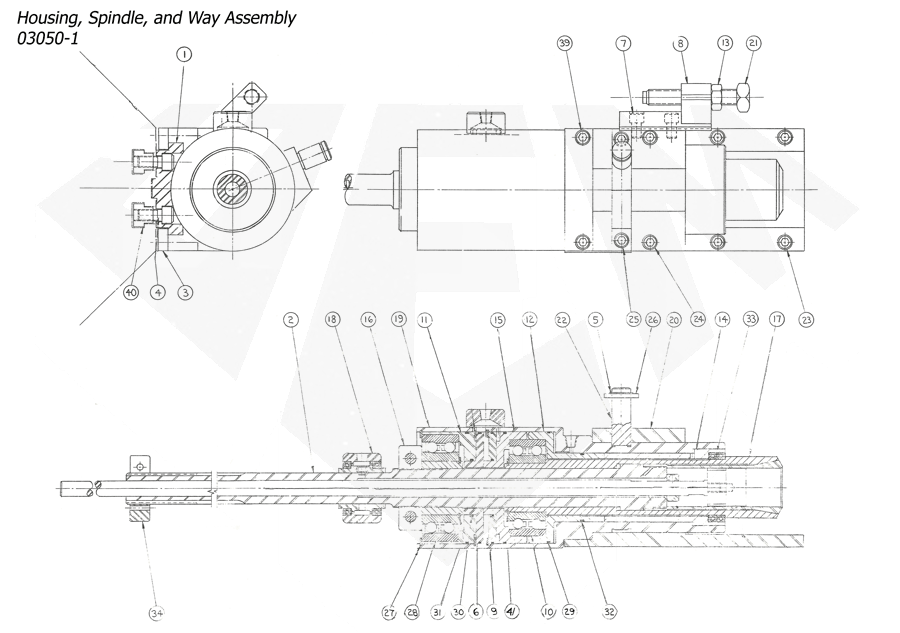

1148-Attachment-Pickoff-7th-3-Housing-Spindle-Way

03050-1 Complete Housing Spindle and Way Assembly

Acme Gridley replacement part number 03050-1
Product details for 03050-1 Complete Housing Spindle and Way Assembly






03050-1 item 1 - Tool Slide Way

Acme Gridley replacement part number 02307-55
Product details for 03050-1 item 1 - Tool Slide Way






03050-1 item 2 - Drive Shaft

Acme Gridley replacement part number 03050-10
Product details for 03050-1 item 2 - Drive Shaft






03050-1 item 3 - Gib

Acme Gridley replacement part number 02307-32
Product details for 03050-1 item 3 - Gib






03050-1 item 4 - Screw

Acme Gridley replacement part number 1156
Product details for 03050-1 item 4 - Screw






03050-1 item 5 - Retaining Ring

Acme Gridley replacement part number 02502-22
Product details for 03050-1 item 5 - Retaining Ring






03050-1 item 6 - Seal Ring

Acme Gridley replacement part number 03022-7
Product details for 03050-1 item 6 - Seal Ring






03050-1 item 7 - Screw

Acme Gridley replacement part number 1188
Product details for 03050-1 item 7 - Screw






03050-1 item 8 - Stop Block

Acme Gridley replacement part number 02307-74
Product details for 03050-1 item 8 - Stop Block






03050-1 item 9 - Retainer and Seal Ring

Acme Gridley replacement part number 03022-8
Product details for 03050-1 item 9 - Retainer and Seal Ring






03050-1 item 10 - Bearing

Acme Gridley replacement part number D-17886
Product details for 03050-1 item 10 - Bearing






03050-1 item 11 - Bearing Retainer

Acme Gridley replacement part number 03022-9
Product details for 03050-1 item 11 - Bearing Retainer






03050-1 item 12 - Bearing Retainer

Acme Gridley replacement part number 03022-10
Product details for 03050-1 item 12 - Bearing Retainer






03050-1 item 13 - Hex Jam Nut

Acme Gridley replacement part number 263
Product details for 03050-1 item 13 - Hex Jam Nut






03050-1 item 14 - Bearing Housing

Acme Gridley replacement part number 03022-11
Product details for 03050-1 item 14 - Bearing Housing






03050-1 item 15 - Bearing Retainer

Acme Gridley replacement part number 03022-12
Product details for 03050-1 item 15 - Bearing Retainer






03050-1 item 16 - Adjusting Nut Assembly

Acme Gridley replacement part number 03022-24
Product details for 03050-1 item 16 - Adjusting Nut Assembly






03050-1 item 17 - Collet Sleeve

Acme Gridley replacement part number 03022-14
Product details for 03050-1 item 17 - Collet Sleeve






03050-1 item 18 - Air Distributor Assembly

Acme Gridley replacement part number 03251-32
Product details for 03050-1 item 18 - Air Distributor Assembly






03050-1 item 19 - Pick Up Housing

Acme Gridley replacement part number 03022-16
Product details for 03050-1 item 19 - Pick Up Housing






03050-1 item 20 - Pick Off Housing

Acme Gridley replacement part number 02307-31
Product details for 03050-1 item 20 - Pick Off Housing






03050-1 item 21 - Screw

Acme Gridley replacement part number 50543
Product details for 03050-1 item 21 - Screw






03050-1 item 22 - Clamping Link

Acme Gridley replacement part number 02307-54
Product details for 03050-1 item 22 - Clamping Link






03050-1 item 23 - Screw

Acme Gridley replacement part number 1151
Product details for 03050-1 item 23 - Screw






03050-1 item 24 - Screw

Acme Gridley replacement part number 1176
Product details for 03050-1 item 24 - Screw






03050-1 item 25 - Screw

Acme Gridley replacement part number 1137
Product details for 03050-1 item 25 - Screw






03050-1 item 26 - Washer

Acme Gridley replacement part number W-421
Product details for 03050-1 item 26 - Washer






03050-1 item 27 - Retaining Ring

Acme Gridley replacement part number 02510-48
Product details for 03050-1 item 27 - Retaining Ring






03050-1 item 28 - Bearing

Acme Gridley replacement part number D-17885
Product details for 03050-1 item 28 - Bearing






03050-1 item 29 - O-Ring

Acme Gridley replacement part number 01829-43
Product details for 03050-1 item 29 - O-Ring






03050-1 item 30 - O-Ring

Acme Gridley replacement part number 01829-31
Product details for 03050-1 item 30 - O-Ring






03050-1 item 31 - Retaining Ring

Acme Gridley replacement part number 02508-15
Product details for 03050-1 item 31 - Retaining Ring






03050-1 item 32 - O-Ring

Acme Gridley replacement part number 01829-34
Product details for 03050-1 item 32 - O-Ring






03050-1 item 33 - Bearing

Acme Gridley replacement part number D-17884
Product details for 03050-1 item 33 - Bearing






03050-1 item 34 - Split Lock Nut Assembly

Acme Gridley replacement part number XA-612
Product details for 03050-1 item 34 - Split Lock Nut Assembly






03050-1 item 39 - Screw

Acme Gridley replacement part number 1101
Product details for 03050-1 item 39 - Screw






03050-1 item 40 - Tee Nut

Acme Gridley replacement part number 14739
Product details for 03050-1 item 40 - Tee Nut






03050-1 item 41 - Retaining Ring

Acme Gridley replacement part number 02508-11
Product details for 03050-1 item 41 - Retaining Ring






1148-Attachment-Pickoff-7th-4-Ejector-Assembly

03050-5 Complete Ejector Assembly

Acme Gridley replacement part number 03050-5
Product details for 03050-5 Complete Ejector Assembly






03050-5 item 1 - Set Screw

Acme Gridley replacement part number A-1904
Product details for 03050-5 item 1 - Set Screw






03050-5 item 2 - Hex Nut

Acme Gridley replacement part number 263
Product details for 03050-5 item 2 - Hex Nut






03050-5 item 3 - Plug

Acme Gridley replacement part number 02069-47
Product details for 03050-5 item 3 - Plug






03050-5 item 4 - Plug Retainer

Acme Gridley replacement part number 02307-76
Product details for 03050-5 item 4 - Plug Retainer






03050-5 item 5 - Ejector Rod

Acme Gridley replacement part number 03050-9
Product details for 03050-5 item 5 - Ejector Rod






03050-5 item 6 - Adjusting Spacer Assembly

Acme Gridley replacement part number TG-961973
Product details for 03050-5 item 6 - Adjusting Spacer Assembly






03050-5 item 7 - Ejector Head

Acme Gridley replacement part number TG-961979
Product details for 03050-5 item 7 - Ejector Head






1148-Attachment-Pickoff-7th-5-Drive-Unit-Assy

03050-2 Complete Drive Unit Assembly

Acme Gridley replacement part number 03050-2
Product details for 03050-2 Complete Drive Unit Assembly






03050-2 item 1 - Drive Sleeve

Acme Gridley replacement part number 03234-86
Product details for 03050-2 item 1 - Drive Sleeve






03050-2 item 2 - Drive Gear

Acme Gridley replacement part number 03050-6
Product details for 03050-2 item 2 - Drive Gear






03050-2 item 3 - Screw

Acme Gridley replacement part number A-572
Product details for 03050-2 item 3 - Screw






03050-2 item 4 - Lock Ring

Acme Gridley replacement part number 03251-42
Product details for 03050-2 item 4 - Lock Ring






03050-2 item 5 - Bearing

Acme Gridley replacement part number D-17865
Product details for 03050-2 item 5 - Bearing






03050-2 item 6 - Bearing Retainer

Acme Gridley replacement part number 03050-7
Product details for 03050-2 item 6 - Bearing Retainer






03050-2 item 7 - Fitting Spacer

Acme Gridley replacement part number 03022-27
Product details for 03050-2 item 7 - Fitting Spacer






03050-2 item 8 - Adjusting Nut Assembly

Acme Gridley replacement part number 226190
Product details for 03050-2 item 8 - Adjusting Nut Assembly






03050-2 item 9 - Lock Washer

Acme Gridley replacement part number 2497
Product details for 03050-2 item 9 - Lock Washer






03050-2 item 10 - Split Drive Gear

Acme Gridley replacement part number TF-913023
Product details for 03050-2 item 10 - Split Drive Gear





Acme Gridley 1-1/4" RB8, 1-5/8" RBN8, 1-5/8" RA6, 1-5/8" RB6, 2" RB6 Spindle Speed & Feed Gears

Feed change gears 96 teeth per set
Spindle speed gears 96 teeth per set
2"-6 spline, 1-1/2" face, 8/10 pitch helical

NUMBER OF
TEETH
PART NUMBER RH OR LH
22 82242 or NA16-22R R
24 82243 or NA16-24R R
26 82244 or NA16-26R R
28 82245 or NA16-28R R
30 82246 or NA16-30R R
32 82247 or NA16-32R R
34 82248 or NA16-34R R
36 82249 or NA16-36R R
38 82250 or NA16-38R R
40 82251 or NA16-40R R
42 82252 or NA16-42R R
44 82253 or NA16-44R R
46 82254 or NA16-46R R
48 82255 or NA16-48R R
50 82256 or NA16-50R R
52 82257 or NA16-52R R
54 86547 or NA16-54R R
56 86548 or NA16-56R R
58 NA16-58R R
44 NA16-44L L
46 NA16-46L L
48 A-38254 or NA16-48L L
50 A-38256 or NA16-50L L
52 82388 or NA16-52L L
54 82258 or NA16-54L L
56 82259 or NA16-56L L
58 82260 or NA16-58L L
60 82261 or NA16-60L L
62 82262 or NA16-62L L
64 82263 or NA16-64L L
66 82534 or NA16-66L L
68 82535 or NA16-68L L
70 82536 or NA16-70L L
72 82537 or NA16-72L L
74 82538 or NA16-74L L
76 82539 or NA16-76L L
78 82540 or NA16-78L L
80 82541 or NA16-80L L
82 82543 or NA16-82L L
84 86240 or NA16-84L L
86 86241 or NA16-86L L
88 86242 or NA16-88L L

Main Menu

Multispindle Screw Machines

Innovations & Attachments

Parts & Tooling Catalogs

Service & Support



JEM Automatics is a FANUC Authorized CNC System Integrator

 We are a FANUC Authorized CNC System Integrator

JEM Automatics & Tooling, Inc.


22845 Hoover Road
Warren, Michigan 48089
v: (586) 755-7300
f: (586) 755-1229
Mon-Fri 8am-5pm

This email address is being protected from spambots. You need JavaScript enabled to view it.

Join Our Newsletter

Sign up to get our latest news and exclusive offers
