Reaming Attachment - 5th Position

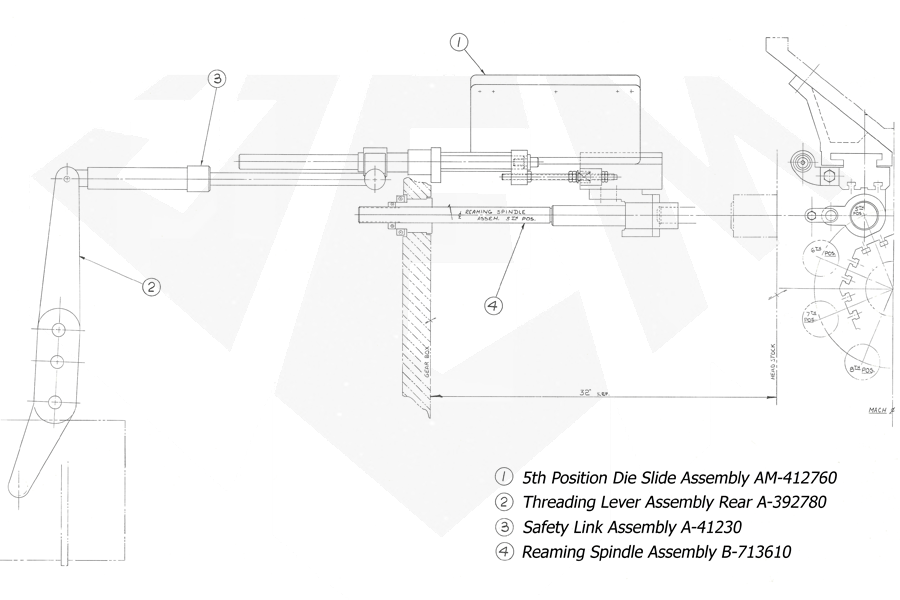

A reaming attachment for 5th position on an Acme Gridley 1-1/4" RB-8 screw machine has four major assemblies:

1148-Attachment-Reaming-5th-Master

1 - 5th Position Die Slide Assembly AM-412760
2 - Threading Lever Assembly Rear A-392780
3 - Safety Link Assembly A-41230
4 - Reaming Spindle Assembly B-713610

Below are the individual replacement parts for each assembly that make up a 5th Position Reaming Attachment for an Acme Gridley 1-1/4" RB-8 screw machine:


1148-Attachment-Reaming-5th-Threading-5th-Die-Slide-Assembly

AM-412760 Complete 5th Position Die Slide Assembly

Acme Gridley replacement part number AM-412760
Product details for AM-412760 Complete 5th Position Die Slide Assembly






AM-412760 item 1 - Screw

Acme Gridley replacement 14XA part number 1148
Product details for AM-412760 item 1 - Screw






AM-412760 item 2 - Gib

Acme Gridley replacement 12XA part number AM-41229
Product details for AM-412760 item 2 - Gib






AM-412760 item 3 - Die Slide Guide

Acme Gridley replacement 7XA part number AM-412270
Product details for AM-412760 item 3 - Die Slide Guide






AM-412760 item 4 - Screw

Acme Gridley replacement 9XA part number 1139
Product details for AM-412760 item 4 - Screw






AM-412760 item 5 - Dowel Pin

Acme Gridley replacement part number 15351
Product details for AM-412760 item 5 - Dowel Pin






AM-412760 item 6 - Die Slide Base

Acme Gridley replacement 8XA part number AM-41223
Product details for AM-412760 item 6 - Die Slide Base






AM-412760 item 7 - Fitting

Acme Gridley replacement part number 8092
Product details for AM-412760 item 7 - Fitting






AM-412760 item 8 - Hex Nut

Acme Gridley replacement 75XA part number 260
Product details for AM-412760 item 8 - Hex Nut






AM-412760 item 9 - Set Screw

Acme Gridley replacement 74XA part number 1490
Product details for AM-412760 item 9 - Set Screw






AM-412760 item 10 - Pusher Bar

Acme Gridley replacement part number AM-41342
Product details for AM-412760 item 10 - Pusher Bar






AM-412760 item 11 - Gib

Acme Gridley replacement 13XA part number AM-41228
Product details for AM-412760 item 11 - Gib






AM-412760 item 12 - Adjusting Gib

Acme Gridley replacement 76XA part number AM-41249
Product details for AM-412760 item 12 - Adjusting Gib






AM-412760 item 13 - Screw

Acme Gridley replacement part number 1109
Product details for AM-412760 item 13 - Screw






AM-412760 item 14 - Connection Piece

Acme Gridley replacement part number AM-412470
Product details for AM-412760 item 14 - Connection Piece






AM-412760 item 15 - Tee Nut

Acme Gridley replacement part number 52203
Product details for AM-412760 item 15 - Tee Nut






AM-412760 item 16 - Screw

Acme Gridley replacement part number 1058
Product details for AM-412760 item 16 - Screw






AM-412760 item 17 - Bearing Housing

Acme Gridley replacement 15XA part number AM-412130
Product details for AM-412760 item 17 - Bearing Housing






AM-412760 item 18 - Spring Screw

Acme Gridley replacement part number 3572
Product details for AM-412760 item 18 - Spring Screw






AM-412760 item 19 - Spring

Acme Gridley replacement part number 2367
Product details for AM-412760 item 19 - Spring






AM-412760 item 20 - Threaded Push Rod

Acme Gridley replacement 2XA part number AM-412120
Product details for AM-412760 item 20 - Threaded Push Rod






AM-412760 item 21 - Jam Nut

Acme Gridley replacement 4XA part number 560
Product details for AM-412760 item 21 - Jam Nut






AM-412760 item 22 - Spring

Acme Gridley replacement 6XA part number 3973
Product details for AM-412760 item 22 - Spring






AM-412760 item 23 - Washer

Acme Gridley replacement part number 50957
Product details for AM-412760 item 23 - Washer






AM-412760 item 24 - Screw

Acme Gridley replacement part number 1139
Product details for AM-412760 item 24 - Screw






AM-412760 item 25 - Washer

Acme Gridley replacement part number 50946
Product details for AM-412760 item 25 - Washer






AM-412760 item 26 - Splined Bushing

Acme Gridley replacement part number A-97376
Product details for AM-412760 item 26 - Splined Bushing






AM-412760 item 27 - Screw

Acme Gridley replacement part number 1106
Product details for AM-412760 item 27 - Screw






AM-412760 item 28 - Die Slide Pusher Assembly

Acme Gridley replacement part number A-412520
Product details for AM-412760 item 28 - Die Slide Pusher Assembly






1148-Attachment-Reaming-5th-Threading-5th-Threading-Lever-Assembly

A-392780 Complete Rear Threading Lever Assembly

Acme Gridley replacement part number A-392780
Product details for A-392780 Complete Rear Threading Lever Assembly






A-392780 item 1 - Threading Lever

Acme Gridley replacement 53XA part number A-392090
Product details for A-392780 item 1 - Threading Lever






A-392780 item 2 - Bushing

Acme Gridley replacement 54XA part number C-17097
Product details for A-392780 item 2 - Bushing






A-392780 item 3 - Spacer

Acme Gridley replacement 60XA part number 44374
Product details for A-392780 item 3 - Spacer






A-392780 item 4 - Set Screw

Acme Gridley replacement 85XA part number 1412
Product details for A-392780 item 4 - Set Screw






A-392780 item 5 - Lever Stud

Acme Gridley replacement 58XA part number A-39242
Product details for A-392780 item 5 - Lever Stud






A-392780 item 6 - Lever Pin

Acme Gridley replacement 52XA part number XA-1753
Product details for A-392780 item 6 - Lever Pin






A-392780 item 7 - Truarc Ring

Acme Gridley replacement part number 02502-26
Product details for A-392780 item 7 - Truarc Ring






A-392780 item 8 - Taper Pin

Acme Gridley replacement 57XA part number 303
Product details for A-392780 item 8 - Taper Pin






A-392780 item 9 - Roll Stud

Acme Gridley replacement 56XA part number 1091
Product details for A-392780 item 9 - Roll Stud






A-392780 item 10 - Roll

Acme Gridley replacement 55XA part number 3019
Product details for A-392780 item 10 - Roll






1148-Attachment-Reaming-4th-5th-Threading-4th-5th-Safety-Link-Assembly

A-41230 Complete Safety Link Assembly

Acme Gridley replacement part number A-41230
Product details for A-41230 Complete Safety Link Assembly






A-41230 item 1 - Pivot

Acme Gridley replacement 50XA part number A-41321
Product details for A-41230 item 1 - Pivot






A-41230 item 2 - Taper Pin

Acme Gridley replacement 49XA part number 306
Product details for A-41230 item 2 - Taper Pin






A-41230 item 3 - Sleeve

Acme Gridley replacement 47XA part number 39319
Product details for A-41230 item 3 - Sleeve






A-41230 item 4 - Spring Adjusting Screw

Acme Gridley replacement 43XA part number 39327
Product details for A-41230 item 4 - Spring Adjusting Screw






A-41230 item 5 - Spring

Acme Gridley replacement 44XA part number 2353
Product details for A-41230 item 5 - Spring






A-41230 item 6 - Plunger

Acme Gridley replacement 45XA part number 39329
Product details for A-41230 item 6 - Plunger






A-41230 item 7 - Slip Pin

Acme Gridley replacement 46XA part number 393280
Product details for A-41230 item 7 - Slip Pin






A-41230 item 8 - Sleeve Nut

Acme Gridley replacement 42XA part number 39320
Product details for A-41230 item 8 - Sleeve Nut






A-41230 item 9 - Safety Link

Acme Gridley replacement 41XA part number A-393180
Product details for A-41230 item 9 - Safety Link






1148-Attachment-Reaming-All-Positions-Spindle-Assembly

B-713610 Complete Reaming Spindle Assembly

Acme Gridley replacement part number B-713610
Product details for B-713610 Complete Reaming Spindle Assembly






B-713610 item 1 - Set Screw

Acme Gridley replacement part number 52685
Product details for B-713610 item 1 - Set Screw






B-713610 item 2 - Set Screw

Acme Gridley replacement part number 1490
Product details for B-713610 item 2 - Set Screw






B-713610 item 3 - Stop Plate

Acme Gridley replacement part number AM-41214
Product details for B-713610 item 3 - Stop Plate






B-713610 item 4 - Screw

Acme Gridley replacement part number 1101
Product details for B-713610 item 4 - Screw






B-713610 item 5 - Reaming Spindle

Acme Gridley replacement part number AM-41280
Product details for B-713610 item 5 - Reaming Spindle






B-713610 item 6 - Fitting

Acme Gridley replacement part number 50994
Product details for B-713610 item 6 - Fitting






B-713610 item 7 - Bushing

Acme Gridley replacement part number B-71287
Product details for B-713610 item 7 - Bushing






B-713610 item 8 - Spacer

Acme Gridley replacement part number A-44712
Product details for B-713610 item 8 - Spacer






B-713610 item 9 - Large Adjusting Nut Assembly

Acme Gridley replacement part number 706190
Product details for B-713610 item 9 - Large Adjusting Nut Assembly






B-713610 item 10 - Small Adjusting Nut Assembly

Acme Gridley replacement part number 15400
Product details for B-713610 item 10 - Small Adjusting Nut Assembly
